Metal Tube Rotameter
Product Overview

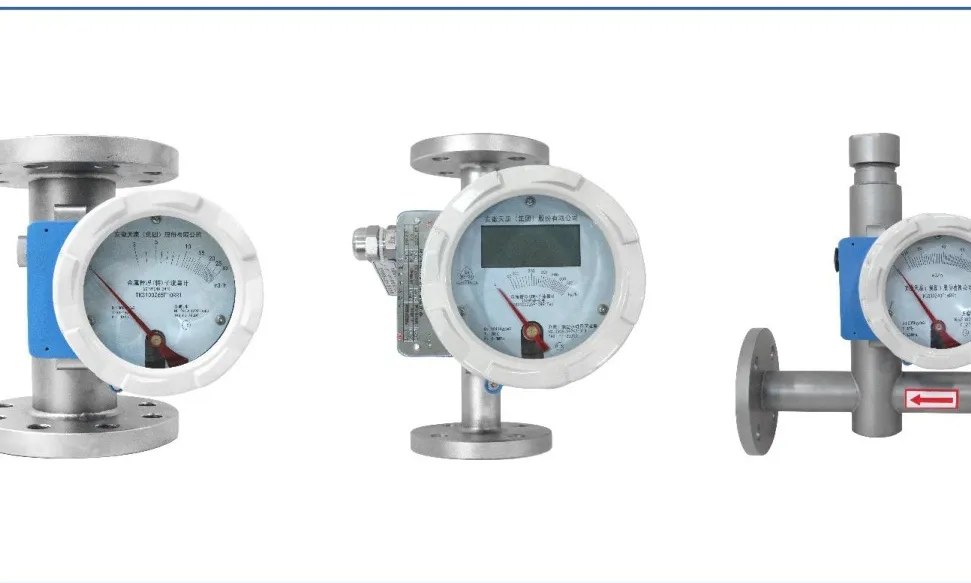

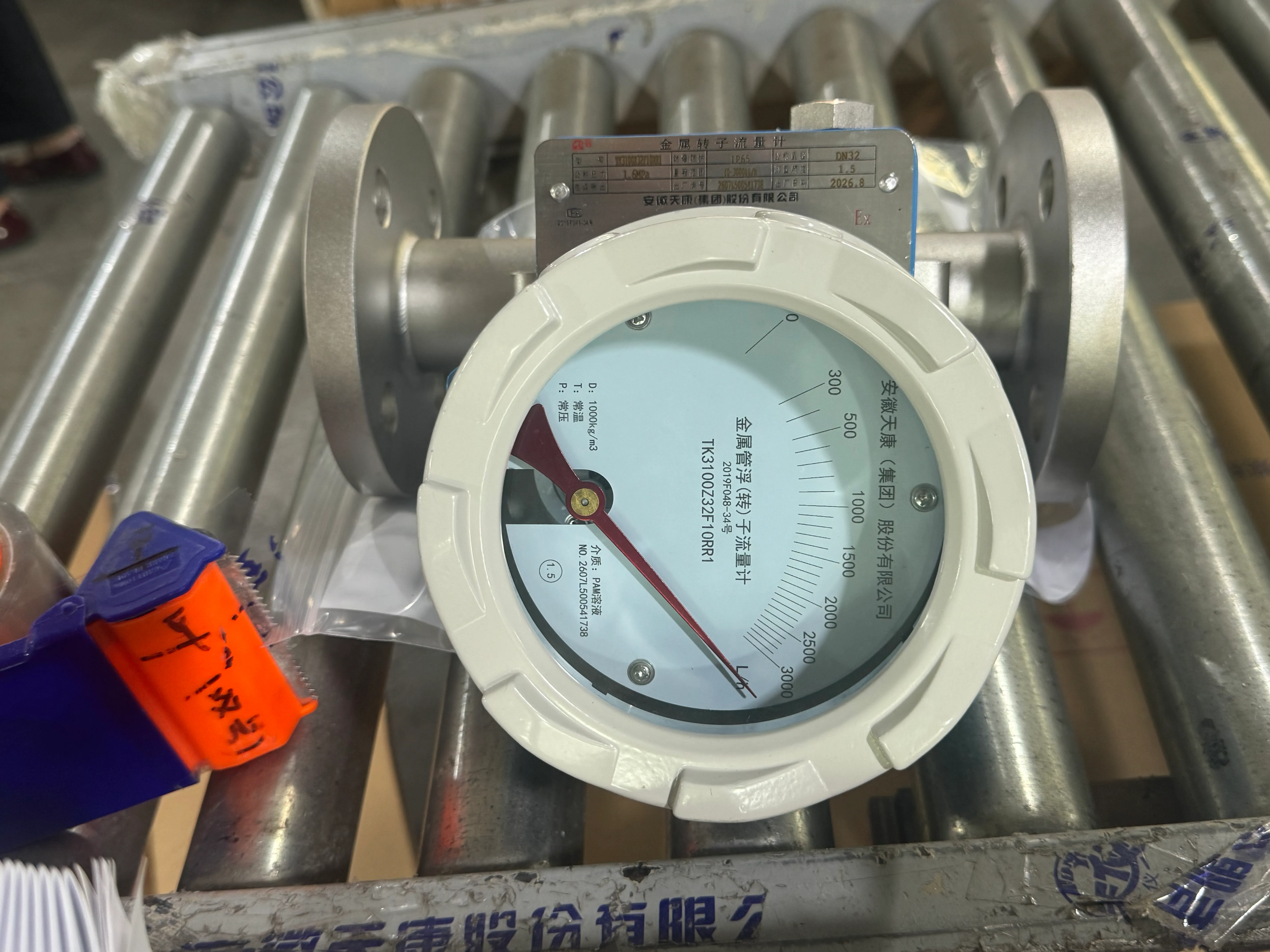

Section titled “Product Overview”The Metal Tube Rotameter is a variable-area flowmeter for liquid and gas flow measurement. It consists of a measuring tube, float, indicator and process connections. As the medium flows upward through the measuring tube, it lifts the float. The balanced float position corresponds to flow rate and is transmitted to the indicator by magnetic coupling or mechanical structure.
This type of flowmeter is robust and suitable for small and medium flow measurement, higher temperature or pressure conditions, local indication and remote transmission. According to the catalogue, optional configurations include magnetic filter, damping device, electrical signal output, intrinsic safety system and upper/lower limit alarm switches.
Applications
Section titled “Applications”- Local flow indication and process monitoring for liquids and gases.
- Chemical, petroleum, metallurgy, power, pharmaceutical and environmental protection applications.
- Measuring points requiring mechanical indication, transmitter output or alarm switches.
- Industrial sites where glass tube rotameters are not suitable due to pressure, temperature or environment.
Product Features
Section titled “Product Features”- Metal measuring tube structure for industrial field use.
- Suitable for liquid and gas media.
- Local indication, remote output and alarm switch options.
- Optional magnetic filter and damping device.
- Optional intrinsic safety system for hazardous areas.
- Multiple connection and installation dimensions for pipeline matching.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Measuring principle | Variable-area measurement with float position changing with flow rate |
| Medium | Liquids and gases |
| Indication | Local indication; electrical signal output optional |
| Connection | Flange connection and other forms according to selection |
| Accessories | Magnetic filter, damping device, upper/lower alarm switches and others |
| Explosion protection | Intrinsic safety system option |
| Output signal | Electrical signal output available according to selection |
Selection Notes
Section titled “Selection Notes”Selection should be based on medium name, flow range, density, viscosity, operating pressure, operating temperature, connection standard, installation direction and whether transmitter output or alarm switches are required.
The catalogue includes product selection tables, flow range tables by diameter, HG/T 20592-2009 flange standards and installation dimensions, outline dimensions, magnetic filter, damping, electrical signal output, intrinsic safety system, upper/lower alarm switch, installation and maintenance, density correction and inquiry form. This product page summarizes the main product information; detailed dimensions, wiring, correction formulas and inquiry form can be checked later in the downloadable technical document.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Whether the measured medium is liquid or gas, and the medium name.
- Minimum, normal and maximum flow under operating conditions.
- Medium density, viscosity, temperature and pressure.
- Pipe diameter, connection standard and installation direction.
- Whether local indication, transmitter output, alarm switches, explosion protection, magnetic filter or damping device is required.
Related Products
Section titled “Related Products”- TK5100 series standard liquid turbine flowmeter.
- TK5200 series insertion liquid turbine flowmeter.
- TK5300 series sanitary liquid turbine flowmeter.
Related Technical Content
Section titled “Related Technical Content”The complete PDF catalogue also includes flow range tables by diameter, HG/T 20592-2009 flange installation dimensions, outline dimensions, magnetic filter, damping, electrical signal output, intrinsic safety system, upper/lower alarm switches, installation and maintenance, density correction and inquiry form. Due to page length, these details can be checked later through the detailed technical document download link.
