Specialized Pressure Gauge

Product Overview

The Specialized Pressure Gauge series includes oxygen pressure gauges, hydrogen pressure gauges and ammonia pressure gauges. These gauges are selected according to the measured gas type and the special requirements of the service medium.

Applications

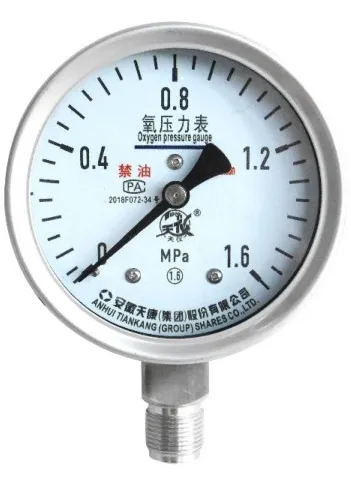

Oxygen pressure measurement.

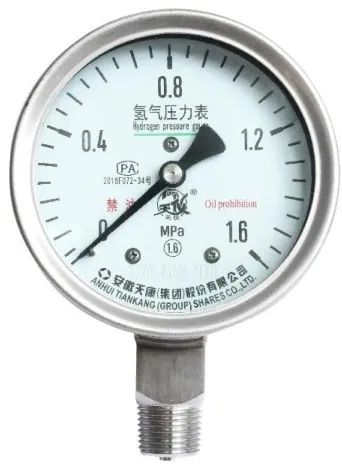

Hydrogen pressure measurement.

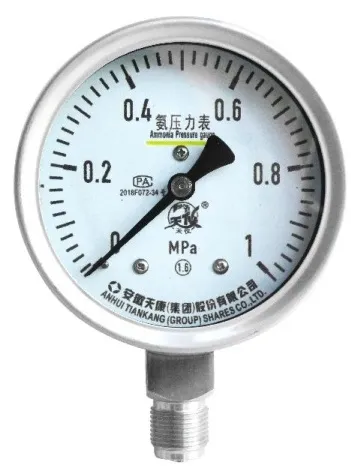

Ammonia pressure measurement.
Applications requiring medium-specific pressure gauges.

Technical Specifications

Item	Specification
Gauge types	Oxygen pressure gauge, hydrogen pressure gauge, ammonia pressure gauge
Nominal diameter	Φ60, Φ100, Φ150
Accuracy grade	1.0, 1.6, 2.5
Measurement range	Vacuum, compound and positive pressure ranges from -0.1 MPa to 0-1000 MPa according to selection

Model Selection

Type	Code
Ammonia	A
Oxygen	O
Hydrogen	Q

Selection item	Options
Dial diameter	Φ60, Φ100, Φ150
Mounting method	Radial direct mounting, radial back projection, radial front flush mounting, axial direct mounting, axial back projection, axial front flush mounting
Process connection	M14×1.5, M20×1.5, G1/2, 1/2 NPT or other
Accuracy grade	1.0, 1.6, 2.5
Optional accessories	Damper, heat sink, overpressure protector, condensing tube or other

Information Required for Inquiry

Required medium type: oxygen, hydrogen or ammonia.
Dial diameter, mounting method and process connection.
Measurement range and accuracy grade.
Whether special casing material is required.
Required accessories.
