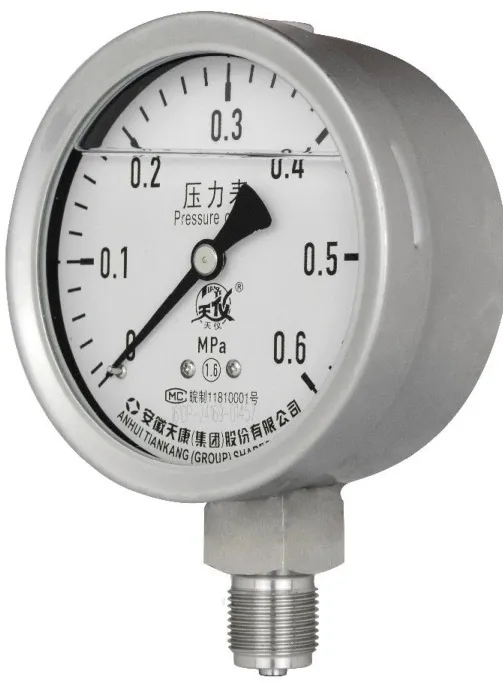

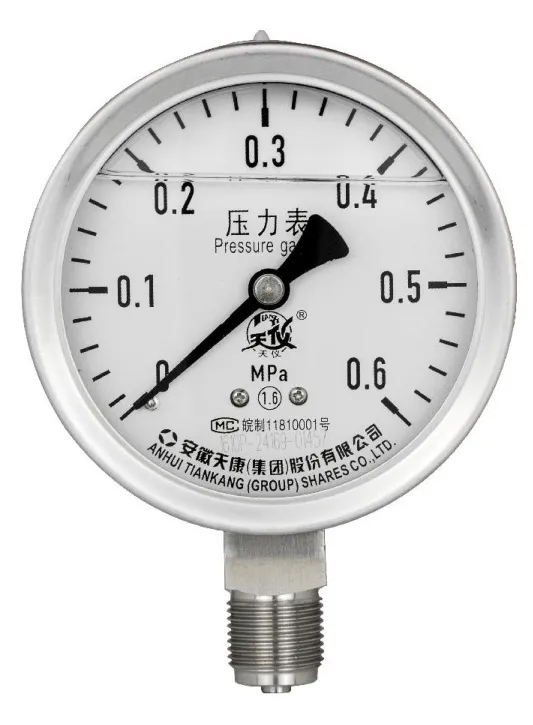

The YBN Series Seismic-resistant Stainless Steel Pressure Gauge is a stainless steel pressure gauge with liquid-filled vibration-resistant construction. It is mainly used for pressure detection where the measured pressure has strong pulsation, pressure shock or the site has significant vibration.
The gauge measures the average value of gas or liquid pulsating pressure and helps reduce damage caused by strong pulsation and vibration, improving reading stability and accuracy.
- Pressure detection in metallurgy, electric power, petroleum, chemical, light industry and machinery.
- Pressure measurement with strong pulsation or pressure shock.
- Production processes with frequent sudden unloading.
- Sites with significant environmental vibration.
- Gas and liquid pulsating pressure measurement.
- Vibration-resistant construction: Liquid filling and damping measures improve seismic performance.
- Stainless steel material options: Shell and wetted material are available as 304SS or 316SS.
- Selectable fill fluids: Silicone oil and glycerol are available according to operating temperature.
- Multiple protection ratings: IP55, IP65 and IP66 are available.
- Flexible mounting and accessories: Common mounting forms and pressure gauge accessories can be selected.

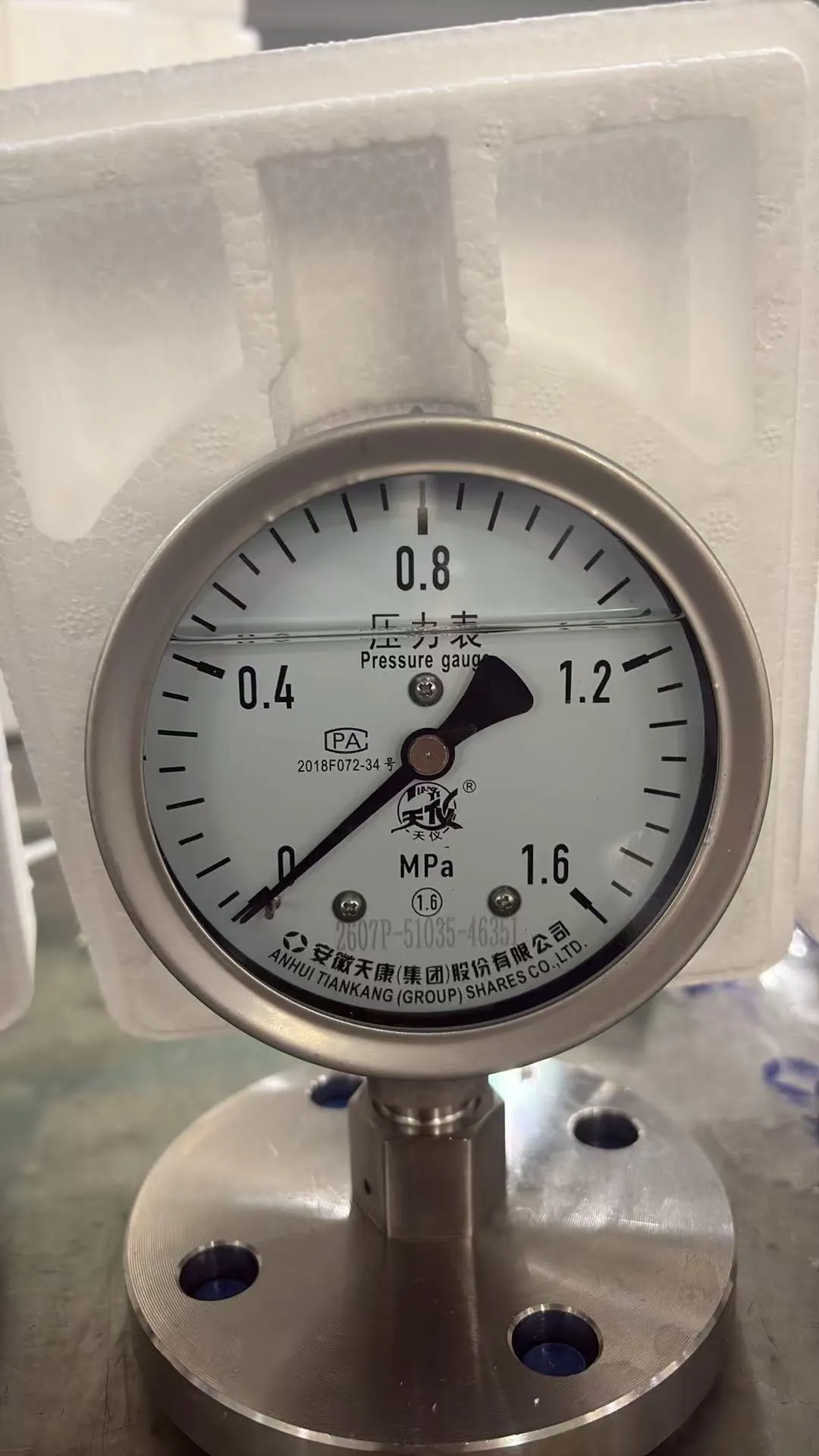

The gauge uses damping oil and buffering measures inside the case to improve vibration resistance. It is suitable for pressure measurement with strong pulsation or shock and for environments with significant vibration. The instrument indicates the average value of gas or liquid pulsating pressure.
| Model |
Measurement range (MPa) |
Accuracy class |
| YBN-60 |
-0.1-0, -0.1-0.06, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4, -0.1-3.9, -0.1-5.9, 0-0.6, 0-1, 0-1.6, 0-2.5, 0-4, 0-6, 0-10, 0-16, 0-25, 0-40, 0-60 |
1.6, 2.5, 4.0 |
| YBN-100, YBN-100Z, YBN-100ZT, YBN-150, YBN-150Z, YBN-150ZT, YBN-200, YBN-250 |
-0.1-0, -0.1-0.06, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4, -0.1-3.9, -0.1-5.9, 0-0.6, 0-1, 0-1.6, 0-2.5, 0-4, 0-6, 0-10, 0-16, 0-25, 0-40, 0-60, 0-100, 0-160, 0-250, 0-400, 0-600, 0-1000 |
1.0, 1.6, 2.5, 4.0 |
| Item |
Specification |
| Operating temperature range |
5-55°C with glycerol filled case; -40-70°C with silicone oil filled case |
| Vibration resistance grade |
V-H-4, V-H-5 |
| Shell protection rating |
IP55, IP65, IP66 |
| Shell material |
304SS, 316SS |
| Wetted material |
304SS, 316SS |
| Fill fluid |
Working temperature range |
| Silicone oil |
-40-130°C |
| Glycerol |
-5-100°C |
| Dial diameter |
Code |
| Φ60 |
60 |
| Φ100 |
100 |
| Φ150 |
150 |
| Φ200 |
200 |
| Φ250 |
250 |
| Installation method |
Code |
| Radial direct mounting |
- |
| Radial mounting with flange at the back |
T |
| Radial mounting with flange at the front |
Q |
| Axial direct mounting |
Z |
| Axial mounting with flange at the back |
ZT |
| Axial mounting with flange at the front |
ZQ |
| Process connection |
| M14×1.5 |
| M20×1.5 |
| G1/2 |
| 1/2 NPT |
| Fill fluid |
Code |
| Silicone oil, low viscosity |
H |
| Silicone oil, high viscosity |
I |
| Glycerol |
J |
| Accessory |
Code |
| Damping device |
ZN |
| Heat dissipater |
SR |
| Overpressure protector |
OP |
| Subcooling pipe |
SP |
| Other accessory |
Specify in text |
- Required model, dial diameter and installation method.
- Measurement range and accuracy class.
- Fill fluid type and operating temperature.
- Shell and wetted material.
- Required vibration resistance grade and protection rating.
- Process connection and accessories.
