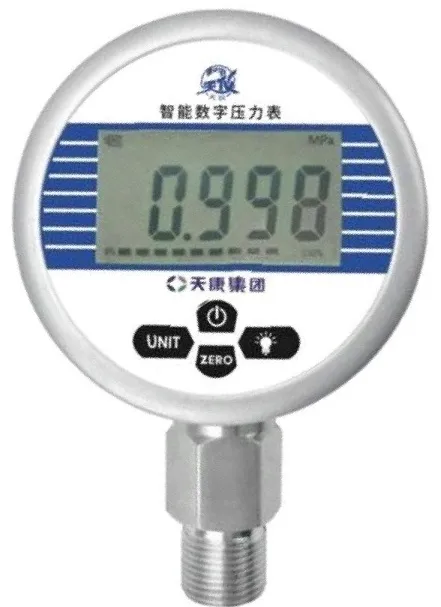

Smart Digital Pressure Gauge
Product Overview
Section titled “Product Overview”The Smart Digital Pressure Gauge is equipped with a built-in high-precision pressure sensor and a large LCD display for real-time pressure indication. It offers high accuracy, good long-term stability and convenient field operation.
The gauge supports zero reset, backlight, power control, unit conversion, low-voltage alarm and peak value recording. The housing and pressure fittings are made of 304 stainless steel, and the instrument is suitable for gas, liquid and oil media compatible with stainless steel.
Applications
Section titled “Applications”- Mechanical and electronic industry pressure measurement.
- Instrument matching and pressure test laboratories.
- Construction machinery automation.
- Standard gauge use for calibrating pressure transmitters and general pressure gauges.
Product Features
Section titled “Product Features”- 100 mm 304 stainless steel case.
- Large LCD display with white backlight.
- Eleven pressure units available: MPa, bar, kgf, mH2O, PSI, kPa, mmHg, torr, mBAR, cmH2O and Pa.
- Zero reset, power on/off, backlight, unit switching and peak value recording.
- Four-level battery indicator and low-voltage alarm.
- Powered by two AAA batteries.
- CE certification and optional Exib IICT4 intrinsic safety certification.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Measurement range | Negative/compound, micro pressure, standard pressure, high pressure and ultra-high pressure ranges according to selection |
| Typical ranges | Micro pressure 0-10, 0-40, 0-60 kPa; standard pressure 0-0.1, 0-1.0, 0-6.0 MPa; high pressure 0-10, 0-25, 0-60 MPa; ultra-high pressure 0-100, 0-160 MPa |
| Overload pressure | 200% for ranges up to 10 MPa; 150% for ranges above 10 MPa |
| Accuracy | 0.4%FS, 0.2%FS; 1.0%FS for partial ranges |
| Long-term stability | Better than ±0.25%FS/year |
| Power supply | 3 V, two AAA batteries |
| Operating temperature | -10 to 60°C; -20 to 150°C available by customization |
| Measuring medium | Gas or liquid compatible with 304 stainless steel |
| Pressure connection | M20×1.5, G1/4 or customized thread |
| Connection material | 304 stainless steel |
| Housing material | 304 stainless steel |
| Electrical protection | Anti-electromagnetic interference design |
| Protection level | IP50; IP54 with protective cover |
| Certifications | CE, Exib IICT4 |
Model Selection
Section titled “Model Selection”- Measurement range codes include kPa, bar, MPa and PSI ranges.
- Accuracy codes include 1.0%FS and 0.2%FS options.
- Power supply code P0 indicates battery power.
- Thread options include G1/4, G1/2, NPT1/4, ZG1/4, M20×1.5 and customized thread.
- Operating temperature options include standard and customized temperature ranges.
- Intrinsic safety option is available as Ex ib.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required pressure range and pressure unit.
- Accuracy grade and operating temperature.
- Pressure connection thread.
- Whether peak recording, protective cover or intrinsic safety certification is required.
- Measured medium and site environment.
Related Products
Section titled “Related Products”- Digital remote transmission pressure gauge.
- Digital pressure switch.
