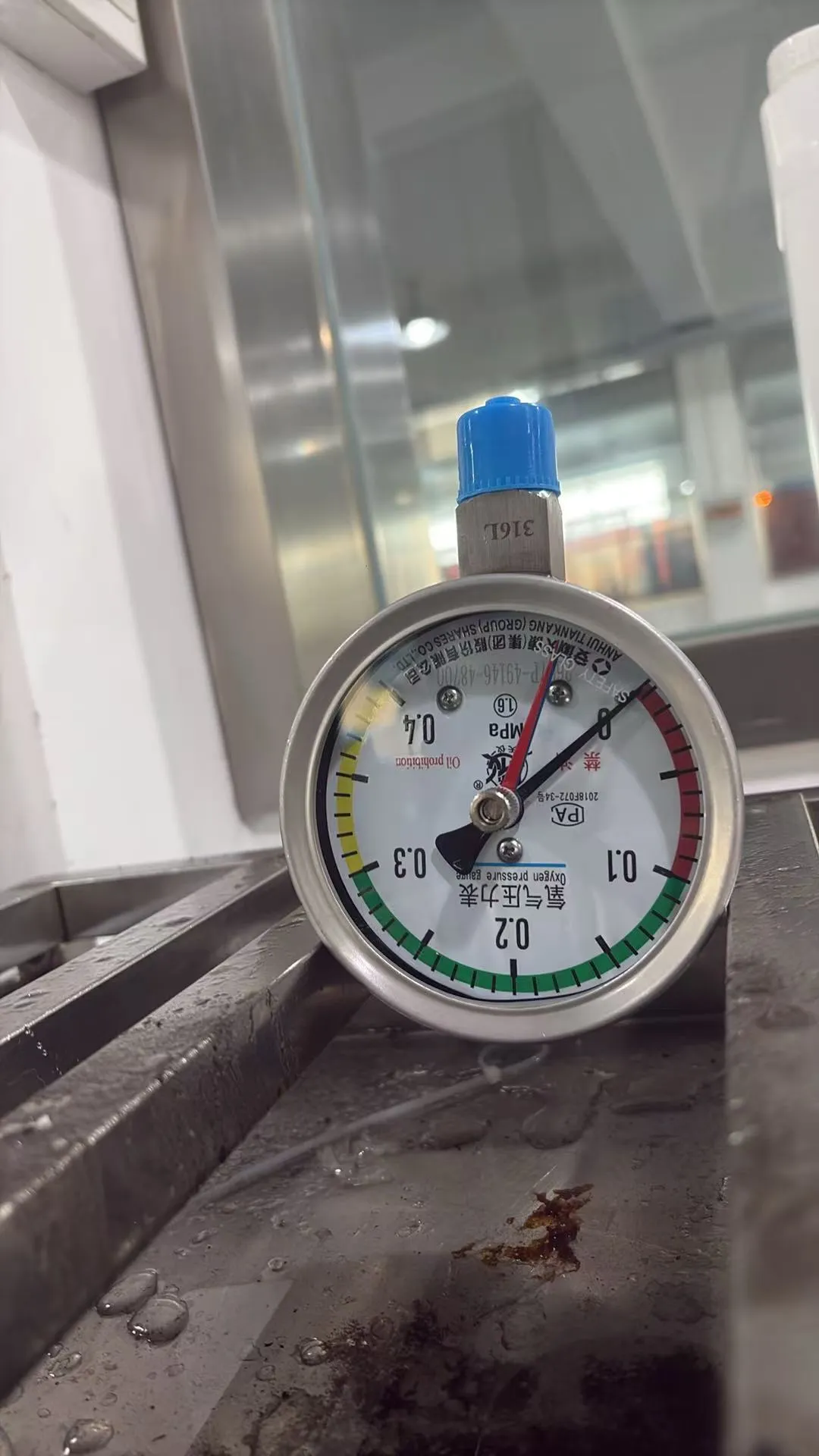

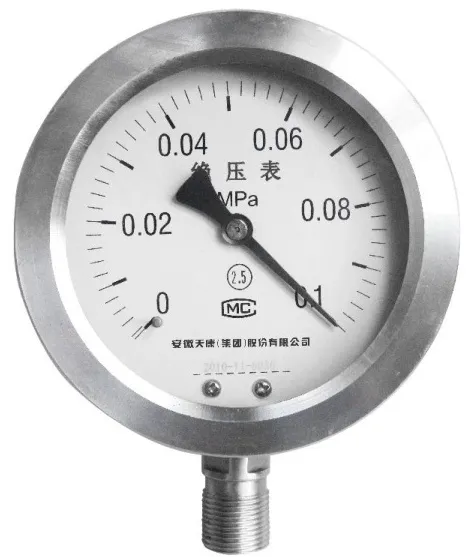

Vacuum Pressure Gauge
Product Overview
Section titled “Product Overview”The Vacuum Pressure Gauge is used to monitor or measure pressure in vacuum-related equipment. The instrument uses absolute vacuum as the reference point for vacuum or absolute pressure measurement.
Absolute pressure value can be expressed as vacuum or negative pressure value plus atmospheric pressure value.
Applications
Section titled “Applications”- Vacuum equipment pressure monitoring.
- Vacuum packaging machinery.
- Condensation pressure monitoring.
- Vapor pressure measurement for liquids.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Models | YEA-100, YEA-150 |
| Measurement range | Vacuum, compound and positive pressure ranges from -0.1 MPa to 0-1000 MPa |
| Accuracy grade | 1.0, 1.6, 2.5, 4.0 |
| Operating temperature | -40-70°C |
| Temperature influence | Not greater than 0.4%/10°C when operating temperature deviates from 20±5°C |
| Vibration resistance | V-H-3 |
| Protection rating | IP55, IP65, IP66 |
| Casing material | 304SS, 316SS |
| Liquid contact material | 304SS, 316SS |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required model and pressure range.
- Accuracy grade and protection rating.
- Casing and wetted materials.
- Vacuum or absolute pressure measurement condition.
- Installation and process connection requirements.
Related Products
Section titled “Related Products”- Precision pressure gauge.
- YB series stainless steel pressure gauge.
