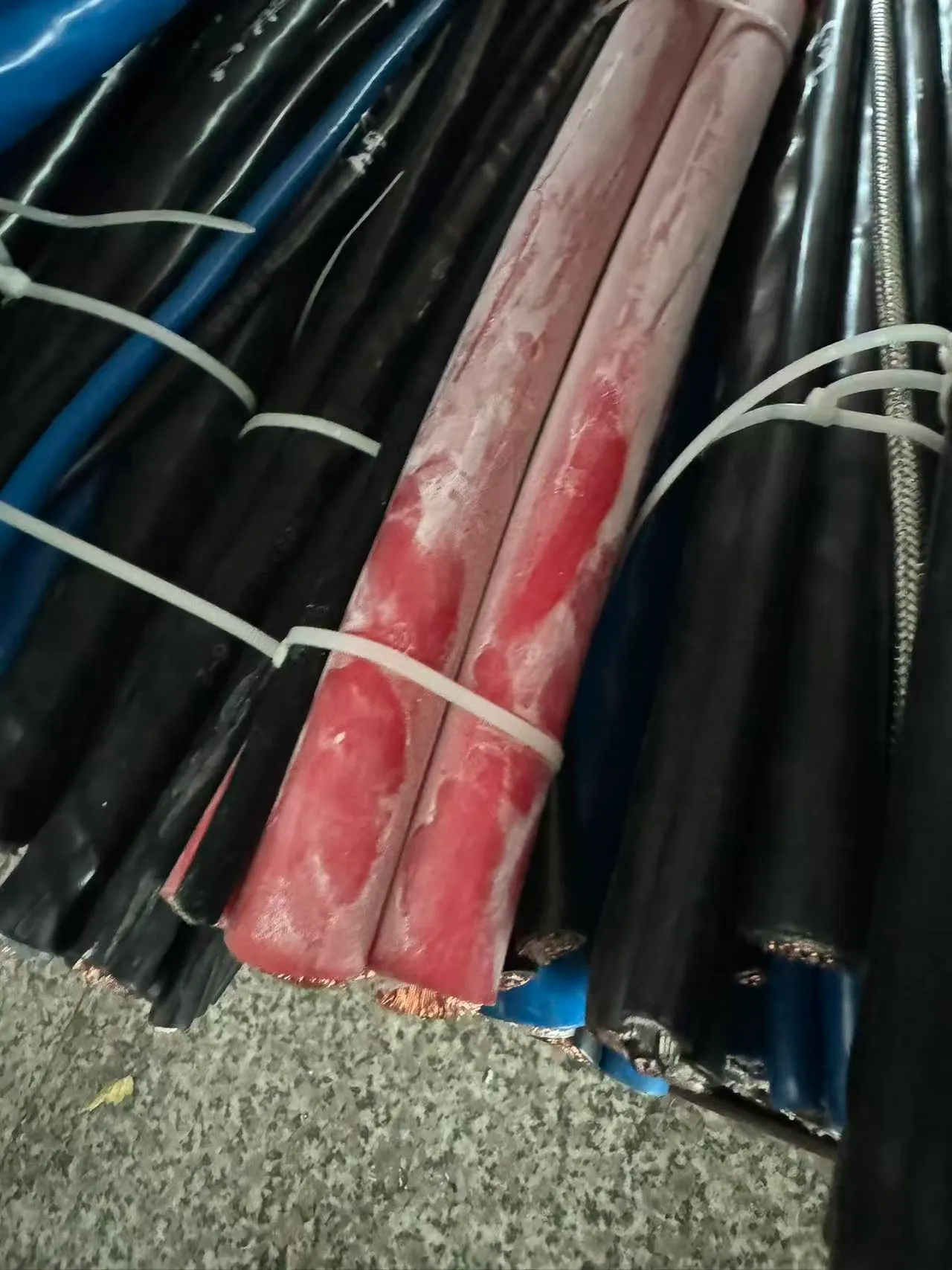

Silicone Insulation Flame-Retardant Power Cable
Product Overview
Section titled “Product Overview”This flame-retardant power cable with silicone rubber insulation is designed for electrical equipment rated up to 0.6/1kV. It is suitable for hot, humid, radiation, ozone, cold or weather-exposed environments where flexibility and stable electrical performance are required.
Applications
Section titled “Applications”- Power circuits in high-temperature or harsh environments.
- Power, metallurgy, chemical and mechanical equipment requiring flame retardance.
- Fixed installations requiring radiation, ozone, water, cold or weather resistance.
Product Features
Section titled “Product Features”- Rated voltage U₀/U: 0.6/1kV.
- Operating temperature range: -60℃ to +180℃.
- Maximum conductor temperature during a short circuit: 350℃ for up to 5s.
- Installation temperature: not lower than -20℃.
- Minimum bending radius: 12D for armoured or shielded constructions and 6D for unarmoured or unshielded constructions.
 |
 |
|---|
Key Parameters
Section titled “Key Parameters”| Item | Specification |
|---|---|
| Standards | TICW4-2009, JB/T 13106-2017 and enterprise standard |
| Common types | GG (YGC), GG2G, GG3G |

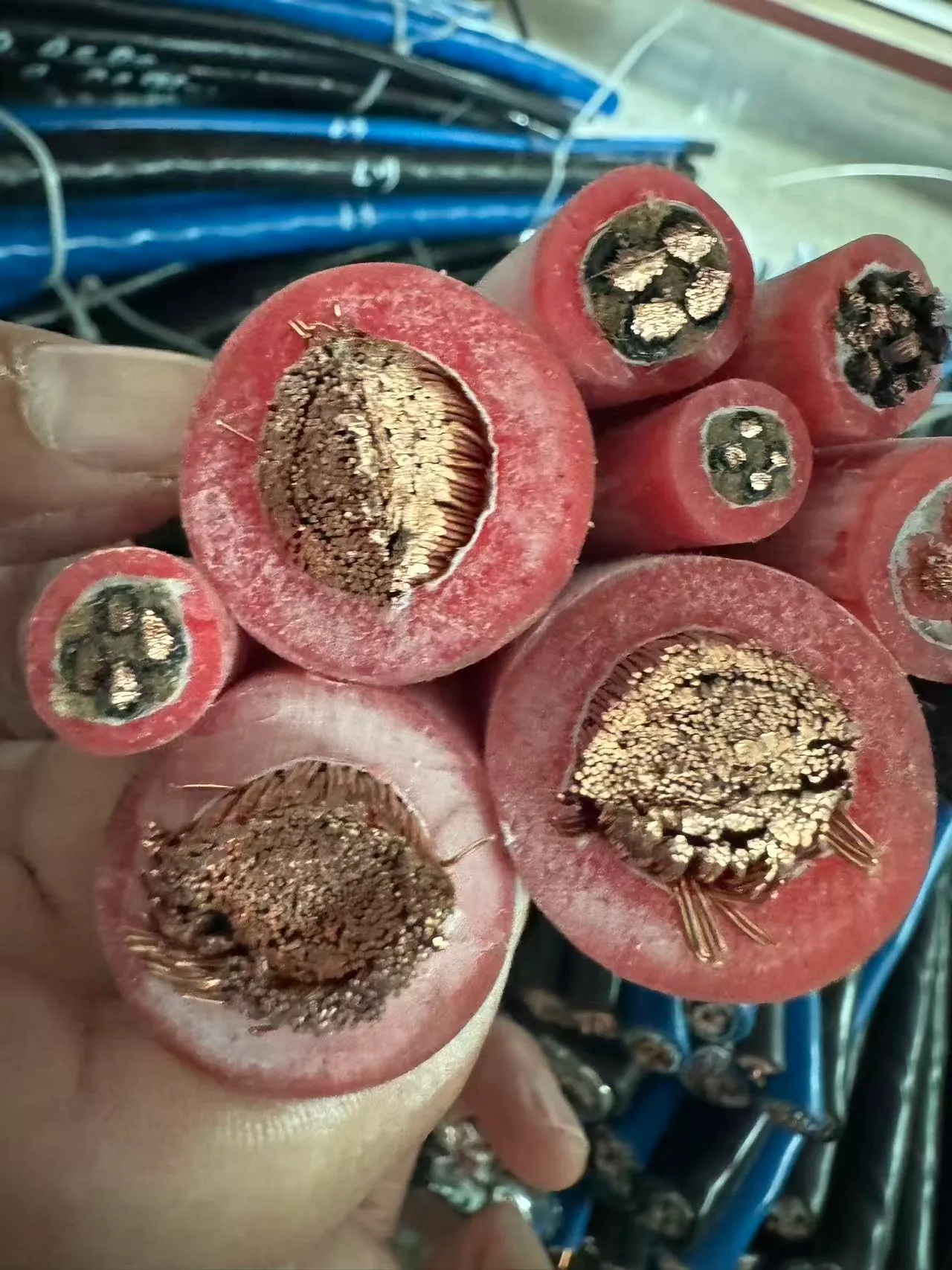

| Conductor | Category 5 flexible conductor |
| Core options | 2, 3, 4, 5, 3+2, 3+1 and 4+1 cores |
| Cross-section | Approx. 1.5-300mm² single-core and 1.5-240mm² multicore |
| Test voltage | 3500V for 5min |
GG2G and GG3G indicate steel-tape and fine-steel-wire armoured constructions. Non-magnetic materials should be used for single-core AC cables.
