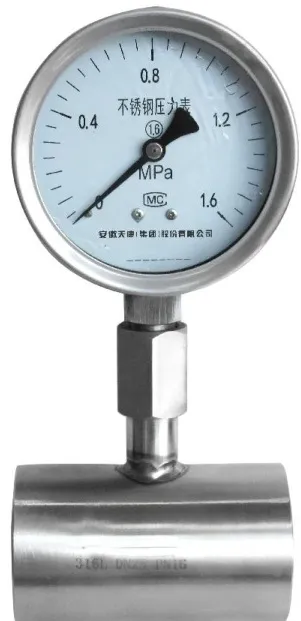

Pipeline Pressure Gauge
Product Overview
Section titled “Product Overview”The Pipeline Pressure Gauge is a pipeline diaphragm pressure gauge used with a pipeline diaphragm isolator. It is widely used in petroleum, chemical, pharmaceutical, food and paper industries.
The structure helps reduce the influence of medium pulsation and environmental vibration, providing stable indication and extending service life.
Applications
Section titled “Applications”- High-viscosity liquid and gas pressure measurement.
- Media prone to crystallization.
- Highly corrosive media.
- Elevated-temperature media.
- Petroleum, chemical, pharmaceutical, food and paper industry pipelines.
Product Principle
Section titled “Product Principle”The pipeline diaphragm pressure gauge is formed by connecting different functional pressure gauges with a pipeline diaphragm isolator. The isolator connection may include threaded connection, sanitary clamp connection and clamp type. A corrugated diaphragm inside the pipeline transmits pressure through isolation liquid.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Models | YMF-100GD, YMF-150GD |
| Measurement range | 0-0.1 to 0-60 MPa and compound ranges from -0.1 MPa according to selection |
| Accuracy grade | 1.0, 1.6, 2.5 |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required model and measurement range.
- Medium viscosity, corrosivity, crystallization and temperature.
- Pipeline connection type and standard.
- Accuracy grade and installation position.
Related Products
Section titled “Related Products”- YM series diaphragm pressure gauge.
- YP series membrane pressure gauge.
