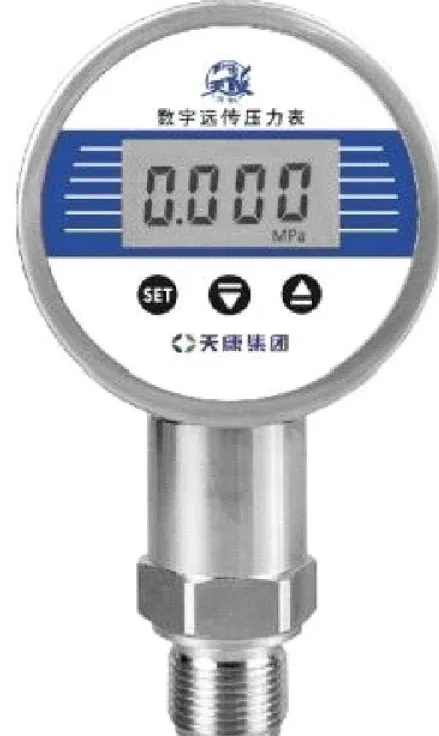

Digital Remote Transmission Pressure Gauge
Product Overview
Section titled “Product Overview”The Digital Remote Transmission Pressure Gauge integrates pressure measurement, local digital display and remote signal output. It can be configured with 4-20 mA or RS485 output, and the pressure signal transmission distance can exceed 500 m.
The instrument uses a built-in pressure sensor and supports unit switching, zero error calibration and filter constant adjustment. The 304 stainless steel case and fittings, waterproof cable outlet and IP65 structure make it suitable for industrial field use.
Applications
Section titled “Applications”- Equipment automation.
- Variable frequency water supply systems.
- Medical equipment.
- Pneumatic and hydraulic systems.
Product Features
Section titled “Product Features”- Four-digit digital display.
- Optional 4-20 mA or RS485 output.
- Remote pressure signal transmission over 500 m.
- Unit switching, zero calibration and filter constant adjustment.
- 304 stainless steel housing and pressure fittings.
- Waterproof cable outlet.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Measurement range | Negative/compound, micro pressure, standard pressure and high pressure ranges according to selection |
| Typical ranges | Micro pressure 0-5, 0-10, 0-16, 0-25, 0-40, 0-60, 0-100 kPa; standard pressure 0-0.25, 0-0.6, 0-1, 0-1.6, 0-2.5, 0-4 MPa; high pressure 0-6, 0-10, 0-16, 0-25, 0-40, 0-60 MPa |
| Overload pressure | 200% below 10 MPa; 150% at 10 MPa and above |
| Display | LCD |
| Response time | ≤2 ms |
| Accuracy | 0.5%FS, 0.2%FS |
| Long-term stability | 0.5%FS/year |
| Power supply | 12-28 VDC |
| Output signal | 4-20 mA, RS485 |
| Operating temperature | -20 to 80°C |
| Electrical protection | Anti-frequency interference design |
| Measuring medium | Gas or liquid compatible with stainless steel |
| Pressure connection | M20×1.5, G1/2, G1/4, ZG1/4, 1/4NPT or customized thread |
| Housing material | 304 stainless steel |
| Protection level | IP54 |
Model Selection
Section titled “Model Selection”- Output types include RS485 and 4-20 mA.
- Electrical connections include direct outlet and plug styles.
- Power supply is 12-28 VDC.
- Operating temperature code T3 indicates -20 to 80°C.
- Threaded connections include M20×1.5, G1/2, G1/4, ZG1/4, 1/4NPT and customized thread.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Pressure range and required output signal.
- Accuracy grade and power supply.
- Electrical connection and cable outlet requirement.
- Pressure connection thread.
- Measured medium and operating temperature.
