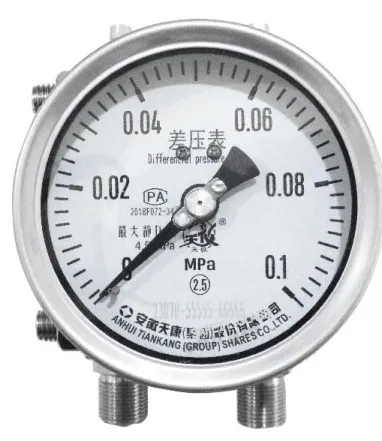

YC Series Differential Pressure Gauge
Product Overview
Section titled “Product Overview”The YC Series Differential Pressure Gauge is used for measuring pressure difference. The PDF includes YCE micro differential pressure gauges for 0-60 kPa and YCW differential pressure gauges for 0.1-2.5 MPa.
The series is suitable for filter positive and negative pressure difference, liquid tank level, pump inlet and outlet, air supply pipelines, pressurization stations and similar applications.
Applications
Section titled “Applications”- Filter pressure difference measurement.
- Liquid tank level measurement by differential pressure.
- Pump inlet and outlet pressure difference.
- Air supply pipelines and pressurization stations.
- Corrosive environments requiring higher pressure resistance.
Product Features
Section titled “Product Features”- Dual-diaphragm or double-bellows differential pressure structure.
- High pressure resistance capability.
- Explosion-proof double-layer safety glass.
- Suitable for backplate mounting or fixed bracket mounting.
- Can be used with three-valve or five-valve manifolds.
Product Types
Section titled “Product Types”YCE Micro Differential Pressure Gauge
Section titled “YCE Micro Differential Pressure Gauge”YCE gauges are used for 0-60 kPa differential pressure measurement.
| Item | Specification |
|---|---|
| Models | YCE-100, YCE-150 |
| Gauge diameter | 100, 150 mm |
| Accuracy class | 2.5%, 1.6% optional |
| Protection rating | IP65 |
| Operating temperature | -20-70°C |
| Process connection | M20×1.5, G1/2, NPT1/2 or custom thread |
| Diaphragm material | Negative pressure side 316L, positive pressure side 316Ti |
| Connection material | 316 |
| Case shell material | 304 |
| Movement material | 304 |
YCW Differential Pressure Gauge
Section titled “YCW Differential Pressure Gauge”YCW gauges use a double bellows structure for 0.1-2.5 MPa differential pressure measurement.
| Item | Specification |
|---|---|
| Models | YCW-100, YCW-150 |
| Measurement range | 0-0.06, 0-0.1, 0-0.16, 0-0.25, 0-0.4, 0-0.6, 0-1.0, 0-1.6, 0-2.5 MPa |
| Accuracy class | 1.0, 1.6, 2.5 |
| Static pressure | Full scale range |
| Dynamic pressure | 0-10 times full scale range |
| Overpressure protection | Bidirectional pressure resistance up to 30 MPa |
Installation
Section titled “Installation”- Back mounting is suitable for flat surface installation, such as gauge panels and exterior flat surfaces.
- Fixed bracket mounting is used for pipeline installation, horizontal or vertical.
- Normal use with a three-valve or five-valve manifold helps protect the gauge.
- The middle valve of the manifold should be opened before use to balance pressure in the gauge body.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required type: YCE micro differential pressure or YCW differential pressure.
- Differential pressure range and accuracy class.
- Static pressure, dynamic pressure and overpressure condition.
- Process connection thread.
- Mounting method and whether a manifold is required.
- Medium and corrosion condition.
