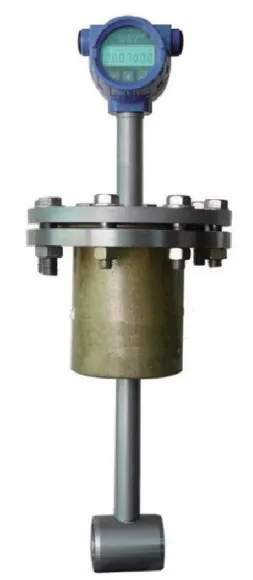

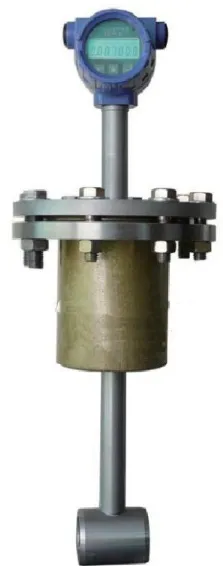

TK5200 Series Insertion Liquid Turbine Flowmeter
Product Overview
Section titled “Product Overview”The TK5200 Series Insertion Liquid Turbine Flowmeter is an insertion-type instrument for liquid flow measurement in large-diameter pipelines. The sensor is inserted into the pipe to measure local velocity, and the pipeline flow is calculated from the pipe cross-sectional area.
The catalogue includes tangential and axial insertion structures, with ordinary insertion and online insertion/removal installation options.
 |
 |
|---|
Product Features
Section titled “Product Features”- Suitable for large-diameter pipeline flow measurement.
- Low pressure loss and limited influence on pipeline resistance.
- Convenient installation and maintenance; some structures support removal without stopping flow.
- Pulse, 4-20 mA, HART or Modbus output options.
- Optional local display, power supply, protection and explosion-proof construction.
- Suitable for clean, low-viscosity and non-corrosive liquids.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Measured medium | Low-viscosity liquids in pipelines |
| Structure | Tangential type, axial type; ordinary insertion or online insertion/removal |
| Applicable diameter | Catalogue covers large diameters such as DN150-DN1100 |
| Output signal | Pulse, 4-20 mA, HART, Modbus and others |
| Power supply | 24 VDC, lithium battery, 220 VAC and others according to selection |
| Connection | Flange installation, ball-valve online insertion installation and others |
| Accuracy grade | 1%, 2.5%, 5% and others according to selection |
| Protection level | IP65, IP67 options |
Installation
Section titled “Installation”TK5200 can be selected according to pipeline and maintenance requirements:
- Ordinary insertion installation.
- Online insertion/removal installation.
- Tangential sensor installation.
- Axial sensor installation.
The sensor insertion depth and installation direction should follow the technical catalogue, and sufficient straight pipe runs should be reserved. For online insertion/removal structures, the ball valve and mounting seat should be configured according to the catalogue.
Model Selection
Section titled “Model Selection”- Basic model: TK5200.
- Installation method: ordinary insertion or online insertion/removal.
- Sensor form: tangential or axial.
- Pipeline diameter: selected for DN150 and above according to site pipeline.
- Nominal pressure: 0.6 MPa, 1.0 MPa, 1.6 MPa, 2.5 MPa, 4.0 MPa or others.
- Temperature range, accuracy, output signal, power supply, protection level and explosion protection are selected according to site conditions.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Pipe diameter, wall thickness, material and installation method.
- Liquid name, density, viscosity, temperature and pressure.
- Minimum, normal and maximum flow rate.
- Whether online removal without stopping flow is required.
- Output signal, power supply, explosion protection and protection level.
