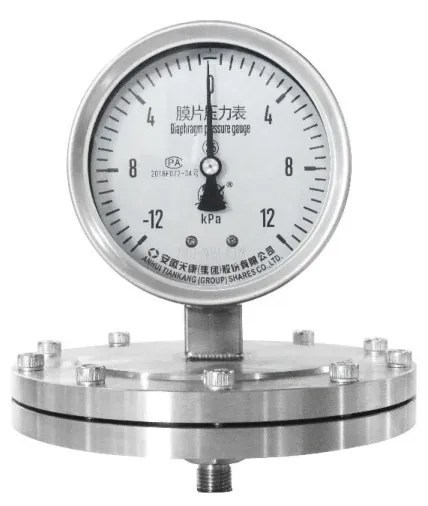

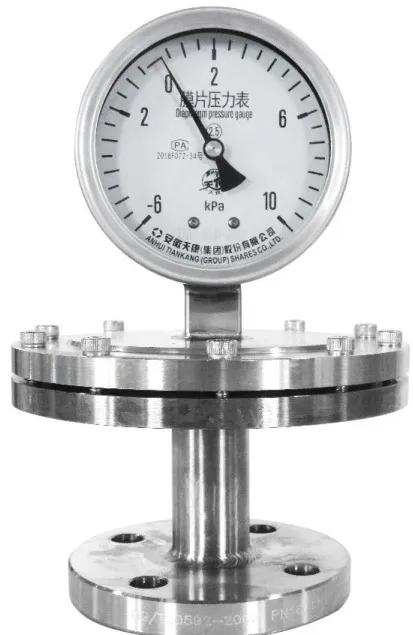

YP Series Membrane Pressure Gauge
Product Overview
Section titled “Product Overview”The YP Series Membrane Pressure Gauge is suitable for measuring low positive or negative pressure of fluid media with certain corrosivity. The measured medium should be non-solidifying and non-crystallizing.
The gauge uses a measuring system with connector, flange and diaphragm, plus transmission mechanism, indicating device and housing.
 |
 |
|---|
Applications
Section titled “Applications”- Low positive pressure measurement.
- Negative pressure measurement.
- Fluid media with certain corrosivity.
- Non-solidifying and non-crystallizing media.
- Applications requiring diaphragm material selection according to medium corrosion.
Product Features
Section titled “Product Features”- Diaphragm sensing structure for low-pressure measurement.
- Sealed anti-splash structure to protect internal parts from environmental influence and contamination.
- Diaphragm materials include 316, 316L, H.C alloy, Ta, PFA and PTFE.
- Connection material includes 304, 316 and PTFE-sprayed options.
- IP55, IP65 and IP66 protection ratings are available.
Product Principle
Section titled “Product Principle”Under the action of the pressure of the measured medium, the diaphragm produces elastic deformation and displacement proportional to pressure. The transmission mechanism amplifies the displacement through a connecting rod, and the indicating device displays the measured pressure.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Indicating diameter | Φ100, Φ150 |
| Accuracy | 1.6, 2.5 |
| Measuring range | Low positive and negative pressure ranges in kPa |
| Diaphragm material | 316, 316L, H.C, Ta, PFA, PTFE |
| Connection material | 304, 316, PTFE sprayed |
| Case shell material | 304, 316 |
| Protection rating | IP55, IP65, IP66 |
| Connection size | Threaded connection M20×1.5; flange connection per standard; special connections require confirmation before ordering |
Model Selection
Section titled “Model Selection”| Selection item | Options |
|---|---|
| Seismic function | Non-seismic none or omitted; seismic code N |
| Dial diameter | Φ100, Φ150 |
| Process connection | M20×1.5, flange connection or others |
| Diaphragm material | 316LSS, H.C alloy, Ta, Ti, Monel, 316 spraying PTFE and others |
| Accuracy class | 1.6, 2.5 or others |
| Case shell fill fluid | Silicone oil, high-viscosity silicone oil or glycerol |
| Available accessories | Damping device, heat dissipater, overpressure protector, subcooling pipe or others |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required positive or negative pressure range in kPa.
- Medium name, corrosivity and whether it crystallizes or solidifies.
- Diaphragm, connection and case shell materials.
- Process connection and flange standard if applicable.
- Accuracy class, dial diameter and protection rating.
- Whether seismic function, fill fluid or accessories are required.
