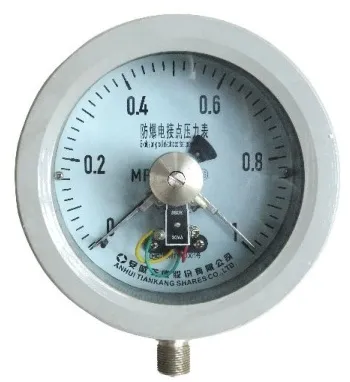

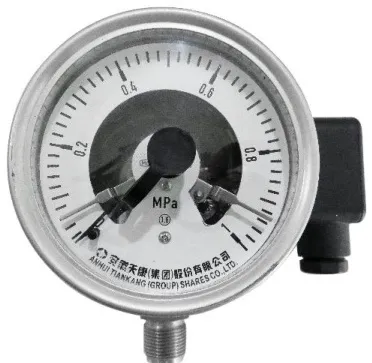

Explosion-proof Electric Contact Pressure Gauge
Product Overview
Section titled “Product Overview”The Explosion-proof Electric Contact Pressure Gauge is used in hazardous environments with explosive mixtures. It measures pressure or negative pressure of non-corrosive, non-crystalline and non-solidifying media such as copper alloys and ordinary carbon steel.
The gauge works with contact devices and electrical components with corresponding explosion-proof performance, providing automatic control, alarm and remote signal transmission functions.
 |
 |
|---|
Applications
Section titled “Applications”- Hazardous environments with explosive mixtures.
- Pressure or vacuum measurement of non-corrosive media.
- Automatic pressure control and alarm.
- Remote pressure signal transmission.
Product Features
Section titled “Product Features”- Explosion-proof casing structure.
- Spring tube pressure gauge with electrical contact device.
- Flameproof or intrinsic safety options.
- Contact power 10 VA.
- Radial direct mounting and custom connection options.
Structure and Principle
Section titled “Structure and Principle”The casing uses an explosion-proof structure to prevent internal explosive mixtures from causing external explosions when affected by sparks or arcs. The instrument consists of a spring tube pressure gauge and an electric contact device. When pressure reaches the set value, the movable contact touches the set contact and completes the circuit.
The inlet rubber sealing ring has an inner diameter of 10 mm. The cable used is 500V BX type rubber cable with an outer diameter of 9.8 mm.
Technical Specifications
Section titled “Technical Specifications”| Gauge type | Measurement range | Accuracy grade | Contact parameter |
|---|---|---|---|
| Explosion-proof electric contact pressure gauge | 0-250 MPa | 1.5% | Contact power 10 VA |
| Explosion-proof electric contact vacuum gauge | -0.1-0 MPa | 1.5% | Contact power 10 VA |
| Explosion-proof electric contact pressure vacuum gauge | -0.1-2.4 MPa | 1.5% | Contact power 10 VA |
| Magnetically assisted explosion-proof electric contact pressure gauge | 0-250 MPa, -0.1-0 MPa, -0.1-2.4 MPa | 1.5% | Contact power 30 VA |
| Item | Specification |
|---|---|
| Explosion-proof mark | Exia IICT4 Ga, Exdb IIBT4 Gb |
| Dial diameter | Φ100, Φ150 or other |
| Explosion-proof type | Flameproof with no code; intrinsic safety code G |
| Installation method | Radial direct mounting or other |
| Process connection | Flange connection or threaded connection, specified in text |
| Accuracy grade | 1.0, 1.6, 2.5 or other |
| Case filling liquid | Low-viscosity silicone oil, high-viscosity silicone oil, glycerin |
| Optional accessories | Damper, heat sink, overpressure protector, condensing tube or other |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Explosion-proof type and required explosion-proof mark.
- Pressure range and gauge type.
- Dial diameter and installation method.
- Process connection and cable requirements.
- Contact form, contact power and matching electrical components.
