TK5100 Series Standard Liquid Turbine Flowmeter
Product Overview
Section titled “Product Overview”The TK5100 Series Standard Liquid Turbine Flowmeter is a velocity-type flowmeter for clean, low-viscosity and non-corrosive liquids. When liquid passes through the sensor, it drives the rotor to rotate. The rotor speed is proportional to flow rate, and the instrument converts the speed signal into a pulse frequency or standard output signal for instantaneous flow, total flow and remote transmission.

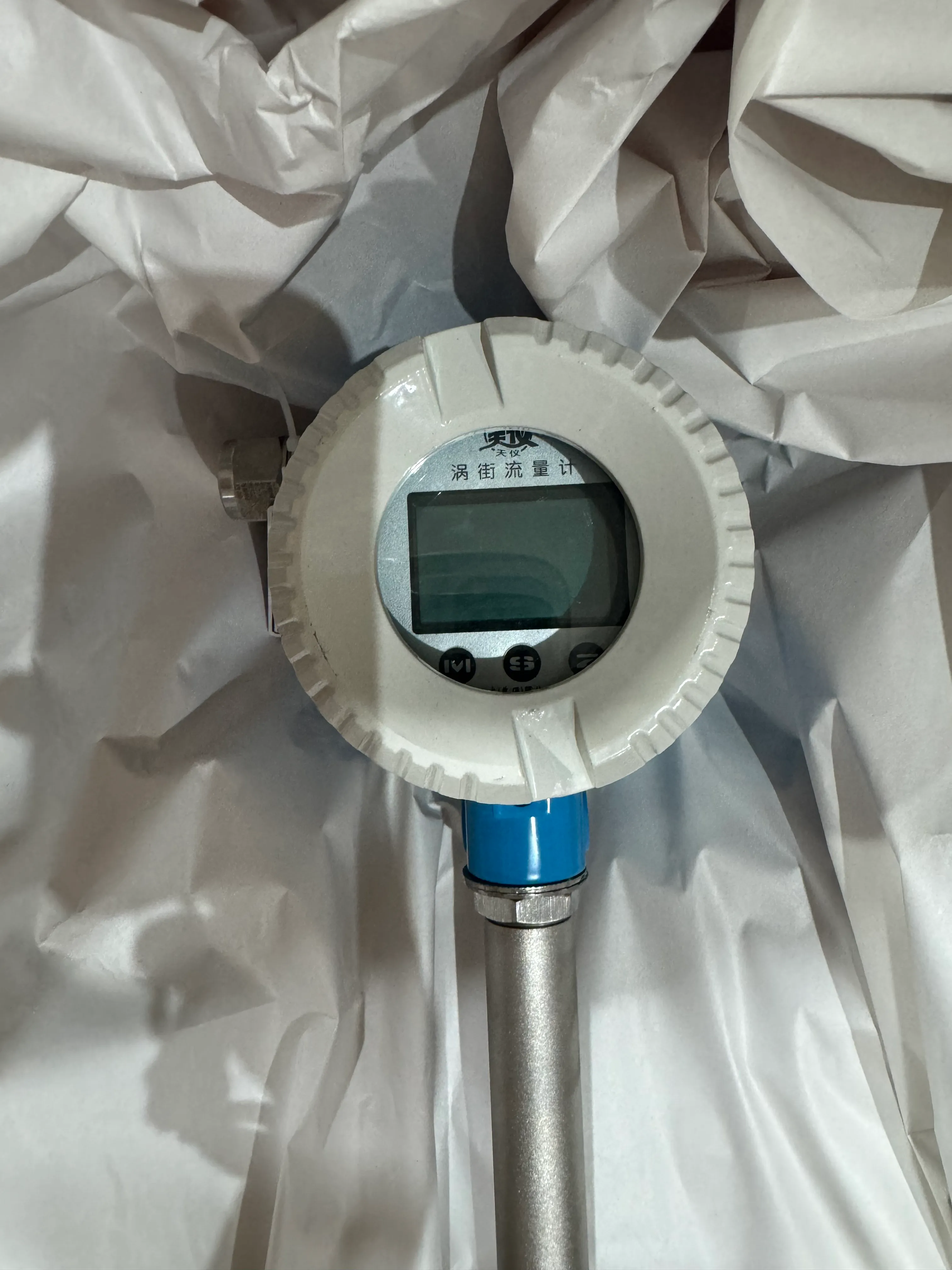

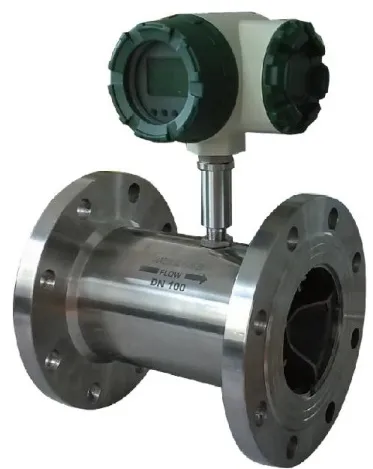

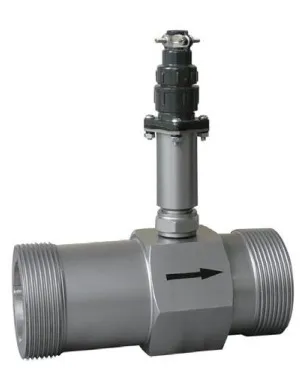

The series can be supplied with flange, threaded or wafer connection, with optional local display, pulse output, 4-20 mA, HART or Modbus communication.
 |
 |
|---|
Product Features
Section titled “Product Features”- High accuracy, generally ±1%R or ±0.5%R, with high-accuracy versions up to ±0.2%R.
- Good repeatability, with short-term repeatability of 0.05%-0.2%.
- Pulse frequency output for totalizing and computer connection.
- Original pulse frequency range of 10 Hz-1.5 kHz.
- Wide turndown ratio of 10:1-20:1.
- Compact and lightweight structure with convenient installation and maintenance.
- Suitable for high-pressure measurement because the sensor body does not require openings.
- Can be made as an insertion type for large pipe diameters with low pressure loss and convenient maintenance.
 |
 |
|---|
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Measured medium | Clean, low-viscosity and non-strongly-corrosive liquids |
| Applicable standard | Turbine flow sensor JB/T 9246-1999 |
| Verification regulation | Turbine flowmeter JJG 1037-2008 |
| Diameter and connection | Flange DN15-DN200; threaded DN4-DN50; wafer DN4-DN200 |
| Instrument material | 304 stainless steel, 316(L) stainless steel and others |
| Accuracy grade | 1%, 0.5%, 0.2% options |
| Repeatability | 0.05%-0.2% |
| Turndown ratio | 10:1-20:1 |
| Output signal | Pulse, 4-20 mA, HART, Modbus and others |
| Power supply | 24 VDC, lithium battery, 220 VAC and others according to selection |
Flow Range and Connection
Section titled “Flow Range and Connection”The catalogue provides liquid flow ranges for different diameters from DN4 to DN200, including normal, extended and recommended flow ranges. Final selection should consider medium viscosity, density, operating pressure, temperature and allowable pressure loss.
Connection options include flange, threaded and wafer forms with different installation accessories. Straight pipe runs should be provided before and after the meter, and installation should avoid strong vibration, two-phase flow and partially filled pipes.
Model Selection
Section titled “Model Selection”- Basic model: TK5100.
- Connection type: flange, threaded, wafer or customized.
- Nominal diameter: selected within DN4-DN200.
- Nominal pressure: 0.6 MPa, 1.0 MPa, 1.6 MPa, 2.5 MPa, 4.0 MPa or others.
- Temperature range: normal, high-temperature or low-temperature form.
- Accuracy grade: 1%, 0.5%, 0.2% and others.
- Output: pulse, 4-20 mA, 4-20 mA + HART, 4-20 mA + Modbus and others.
- Power supply, protection level and explosion protection are selected according to site conditions.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Medium name, density, viscosity and corrosivity.
- Normal, minimum and maximum flow rate.
- Pipe diameter, connection type and nominal pressure.
- Medium temperature, ambient temperature and installation position.
- Output signal, power supply, explosion protection and ingress protection requirements.
Related Products
Section titled “Related Products”- TK5200 series insertion liquid turbine flowmeter.
- TK5300 series sanitary liquid turbine flowmeter.
- Metal tube rotameter.
