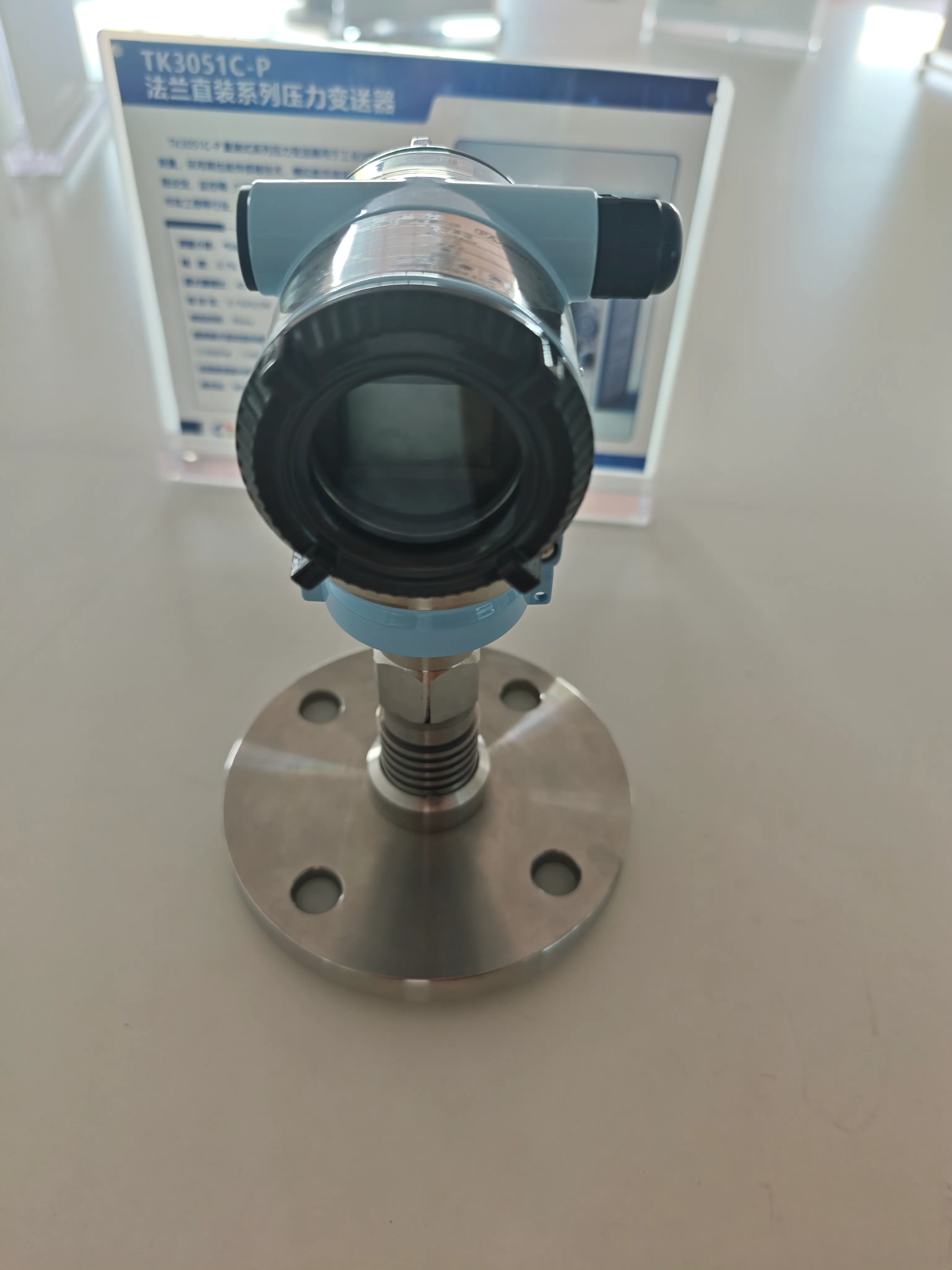

The TK3051P High Temperature Anti-Corrosion Pressure Transmitter is configured from the TK3051T series for high-temperature, corrosion-resistant and remote diaphragm-seal pressure measurement. Gauge or absolute pressure sensors, fill fluids, temperature isolators, capillary tubes and flange or threaded process connections can be selected for the application.
- Pressure measurement in high-temperature process media.
- Pressure measurement in corrosive media.
- Installations requiring a remote diaphragm seal or temperature isolation.
- Petroleum, chemical and other process equipment requiring corrosion-resistant wetted materials.
- Hazardous areas requiring intrinsic safety or explosion suppression certification.
- High-temperature isolation: High-temperature oil, a 100 mm temperature isolator or a 1 m capillary can be selected.
- Selectable pressure type: Gauge and absolute pressure sensor configurations are available.
- Multiple ranges: Gauge pressure sensors cover 40 kPa to 40 MPa; absolute pressure sensors cover 40 kPa to 4 MPa.
- Wetted material options: 316L stainless steel, Hastelloy C276, tantalum and PTFE-coated 316L stainless steel are available.
- Flexible process connections: G1A, G1/2A and G2A external threads, welded threads, flat flanges and extended structures are available.
- Selectable output: 4-20 mA analog output and 4-20 mA/HART communication are available.
- Hazardous-area certification: Ex ia IIC T4/T6 intrinsic safety and Ex d IIC T4/T6 explosion suppression configurations are available.
| Feature |
Details |
| Transmitter type |
Standard, Ex ia IIC T4/T6 intrinsic safety or Ex d IIC T4/T6 explosion suppression |
| Gauge pressure range |
40 kPa, 200 kPa, 1 MPa, 4 MPa, 7 MPa, 10 MPa, 20 MPa or 40 MPa |
| Absolute pressure range |
40 kPa, 200 kPa, 1 MPa or 4 MPa |
| Output |
4-20 mA; 4-20 mA/HART; special outputs by agreement |
| Fill fluid |
Silicone oil, high-temperature oil, high-temperature oil with 100 mm isolator, high-temperature oil with 1 m capillary or silicone oil with 1 m capillary |
| Housing and display |
Aluminum housing with M20 x 1.5 cable entry; digital meter optional |
| Type |
Code |
Sensor range |
Maximum overpressure |
| Gauge pressure |
1F / 1K / 1P / 1S |
40 kPa / 200 kPa / 1 MPa / 4 MPa |
1 / 2 / 4 / 6 MPa |
| Gauge pressure |
1G / 1L / 1X / 1H |
7 MPa / 10 MPa / 20 MPa / 40 MPa |
10 / 15 / 30 / 60 MPa |
| Absolute pressure |
2F / 2K / 2P / 2S |
40 kPa / 200 kPa / 1 MPa / 4 MPa |
1 / 2 / 4 / 6 MPa |
| Code |
Connection |
Minimum recommended measurement or specification |
| AF |
G1A external thread |
200 kPa |
| AG |
G1/2A external thread |
40 kPa |
| AR |
G2A external thread |
10 kPa |
| CA |
Welded G1/2A thread with 11.4 mm inner hole |
Special NPT standards available |
| DK / SU |
GB9123-88 DN50 / DN80 flat flange |
PN1 MPa or PN4 MPa |
| AK / BK / OK |
DN50 flat flange with 50 / 100 / 200 mm extension |
PN1 MPa or PN4 MPa |
| MU / NU / PU |
DN80 flat flange with 50 / 100 / 200 mm extension |
PN1 MPa or PN4 MPa |
| Item |
Available options |
| Diaphragm |
316L stainless steel, Hastelloy C276, tantalum or 316L with PTFE coating |
| Installation accessories |
Installation frame G, standard cable seal cartridge, M20 x 1.5 external screw and explosion-proof cable seal cartridge T2 |
| Calibration unit |
kPa or MPa, confirmed during selection |
- Direct external-thread installation.
- Welded-thread installation.
- Flat flange or extended flat flange installation.
- Temperature-isolator installation.
- 1 m capillary remote installation.
- Gauge or absolute pressure measurement type.
- Sensor range, maximum working pressure and process temperature.
- Media corrosiveness and required diaphragm material.
- High-temperature oil, temperature isolator or capillary remote requirement.
- Process connection, flange standard, size and extension length.
- Output signal, HART communication, display and hazardous-area certification.
- Temperature isolators and capillary remote assemblies.
- Flat flanges, extended flat flanges and welded-thread process connection parts.
- Installation frames, cable seals and digital meters.
