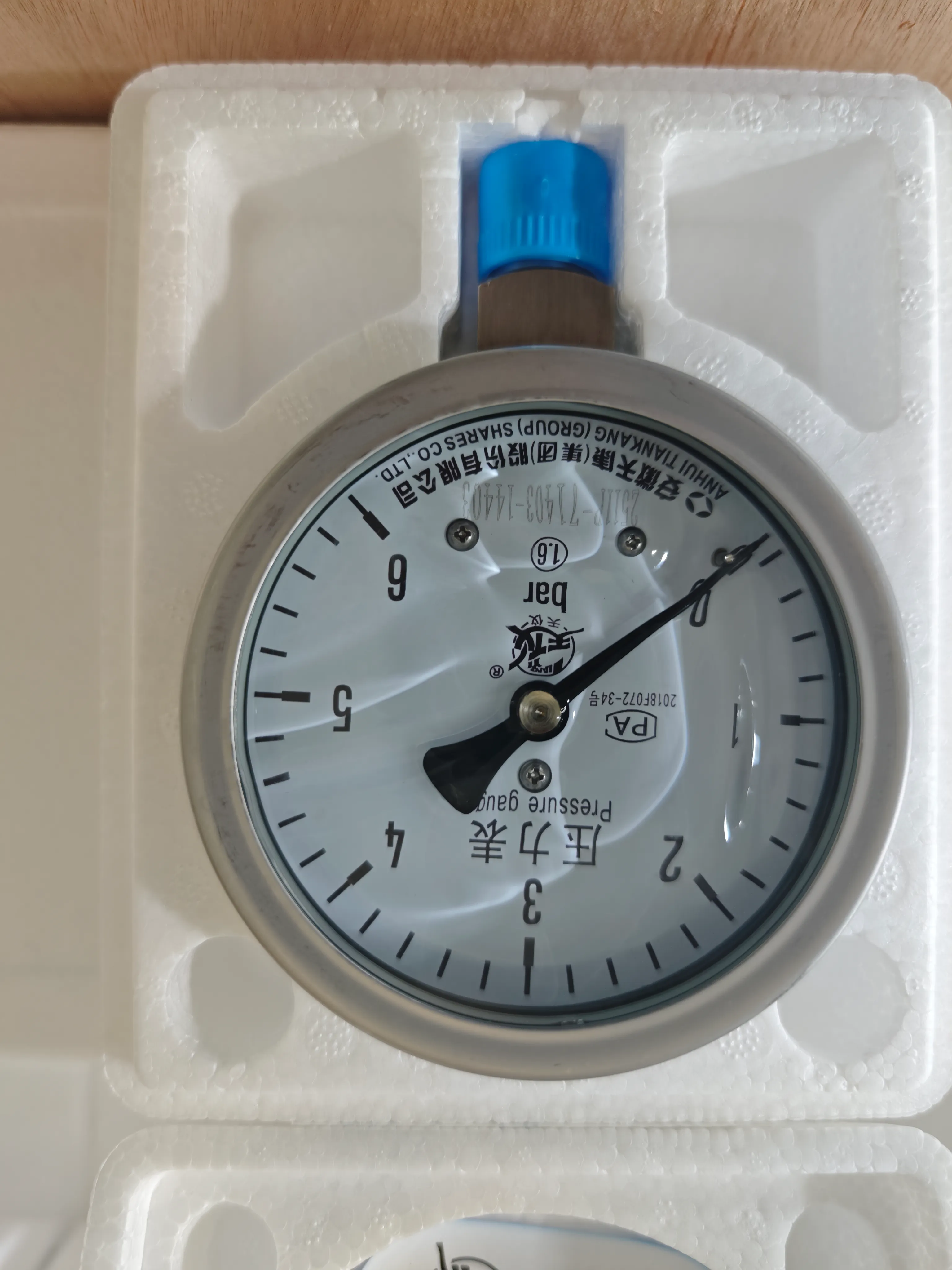

Y Series General Pressure Gauge
Product Overview
Section titled “Product Overview”The Y Series General Pressure Gauge is a pointer-type mechanical pressure gauge for on-site pressure indication. It is suitable for measuring the pressure of liquid or gas media that are non-explosive, non-crystallizing, non-solidifying and non-corrosive to copper alloys.
The gauge is available in multiple dial diameters and mounting structures, including bottom mounting, back mounting and flange-mounted configurations. It is commonly used for general industrial pressure indication where a simple, reliable and direct-reading instrument is required.
Applications
Section titled “Applications”- Pressure measurement of non-explosive liquid or gas media.
- Pressure indication for media that do not crystallize or solidify.
- General pressure measurement where the medium is non-corrosive to copper-alloy wetted parts.
- Local pressure indication on pipelines, equipment and auxiliary systems.
- Installations requiring bottom mounting, back mounting or panel/flange mounting.
Product Features
Section titled “Product Features”- Direct pressure indication: The pressure value is shown by a pointer and dial, making field reading simple and intuitive.
- Bourdon tube sensing element: The pressure-sensitive Bourdon tube drives the movement through mechanical deformation.
- Multiple dial sizes: Dial diameters from 60 mm to 250 mm are available for different visibility and installation requirements.

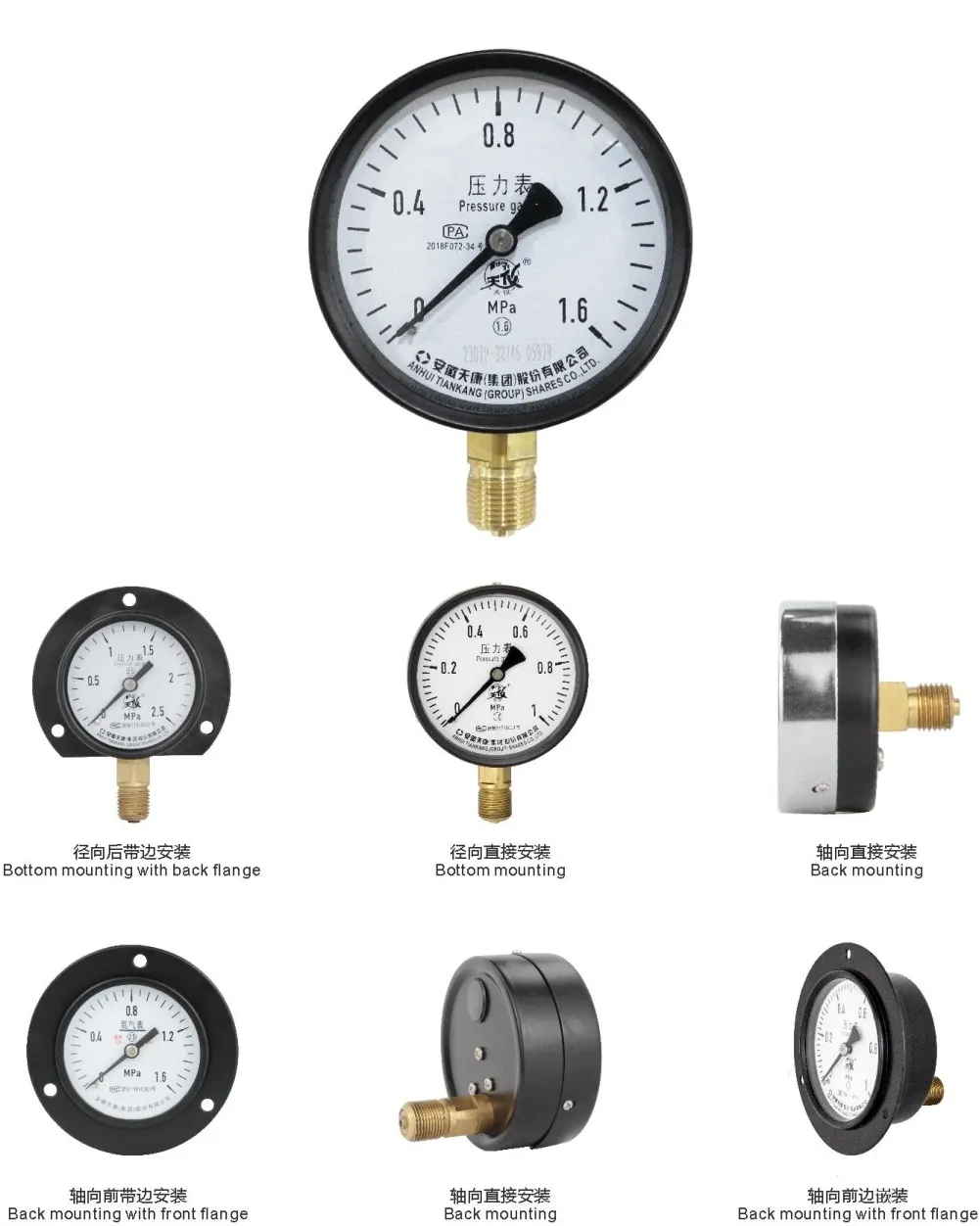

- Flexible mounting forms: Bottom mounting, back mounting and front or rear flange mounting configurations can be selected.
- Wide pressure range: Vacuum, compound and positive pressure ranges are available according to model size.
- Optional accessories: Damping device, heat dissipater, overpressure protector and subcooling pipe can be selected for special working conditions.
Product Principle
Section titled “Product Principle”The measuring system consists of a connection, a Bourdon tube and a transmission mechanism. The Bourdon tube is bent into a circular shape with an elliptical cross-section. When the measured medium enters the tube, the pressure causes the tube cross-section to tend toward a circular shape. The amount of deformation depends on the pressure of the measured medium.
This deformation is transferred through the movement and indicated by the pointer. C-type Bourdon tubes can be used for measuring pressures up to 10 MPa. For higher pressures, the Bourdon tube uses multiple coils or spiral coils on the same plane.
Technical Specifications
Section titled “Technical Specifications”Measurement Range and Accuracy
Section titled “Measurement Range and Accuracy”| Model | Measurement range (MPa) | Accuracy class |
|---|---|---|
| Y-60 | -0.1-0, -0.1-0.06, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4, -0.1-3.9, -0.1-5.9, 0-0.6, 0-1, 0-1.6, 0-2.5, 0-4, 0-6, 0-10, 0-16, 0-25, 0-40, 0-60 | 1.6, 2.5, 4.0 |
| Y-100, Y-100Z, Y-100ZT, Y-150, Y-150Z, Y-150ZT, Y-200, Y-250 | -0.1-0, -0.1-0.06, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4, -0.1-3.9, -0.1-5.9, 0-0.6, 0-1, 0-1.6, 0-2.5, 0-4, 0-6, 0-10, 0-16, 0-25, 0-40, 0-60, 0-100, 0-160, 0-250, 0-400, 0-600, 0-1000 | 1.0, 1.6, 2.5, 4.0 |
Protection Rating
Section titled “Protection Rating”| Item | Specification |
|---|---|
| Protection rating | IP55 |
Dimensions
Section titled “Dimensions”| Nominal diameter of the shell D (mm) | Center circular diameter of the mounting bolts d0 (mm) | Diameter of the bolt holes on the shell d1 (mm) |
|---|---|---|
| 40 | 50 | 4 |
| 60 | 72 | 5 |
| 100 | 118 | 6 |
| 150 | 165 | 6 |
| 200 | 215 | 6 |
| 250 | 272 | 7 |
Model Selection
Section titled “Model Selection”Dial Diameter
Section titled “Dial Diameter”| Dial diameter | Code |
|---|---|
| Φ60 | 60 |
| Φ100 | 100 |
| Φ150 | 150 |
| Φ200 | 200 |
| Φ250 | 250 |
Installation Method
Section titled “Installation Method”| Installation method | Code |
|---|---|
| Radial direct mounting | - |
| Radial mounting with flange at the back | T |
| Radial mounting with flange at the front | Q |
| Axial direct mounting | Z |
| Axial mounting with flange at the back | ZT |
| Axial mounting with flange at the front | ZQ |
Process Connection
Section titled “Process Connection”| Process connection |
|---|
| M14×1.5 |
| M20×1.5 |
| G1/2 |
| 1/2 NPT |
| Other connection specified in text |
Accuracy Class
Section titled “Accuracy Class”- 1.0
- 1.6
- 2.5
- 4.0
Available Accessories
Section titled “Available Accessories”| Accessory | Code |
|---|---|
| Damping device | ZN |
| Heat dissipater | SR |
| Overpressure protector | OP |
| Subcooling pipe | SP |
| Other accessory | Specify in text |
Main Models
Section titled “Main Models”- Y-60 general pressure gauge.
- Y-100 general pressure gauge.
- Y-100Z axial direct mounting general pressure gauge.
- Y-100ZT axial mounting with rear flange general pressure gauge.
- Y-150 general pressure gauge.
- Y-150Z axial direct mounting general pressure gauge.
- Y-150ZT axial mounting with rear flange general pressure gauge.
- Y-200 general pressure gauge.
- Y-250 general pressure gauge.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required model, dial diameter and installation method.
- Measurement range and accuracy class.
- Process connection size and thread standard.
- Measured medium and whether it is corrosive to copper alloys.
- Whether the medium is explosive, crystallizing or solidifying.
- Required accessory, such as damping device, heat dissipater, overpressure protector or subcooling pipe.
- Site operating pressure, medium temperature and installation position.
