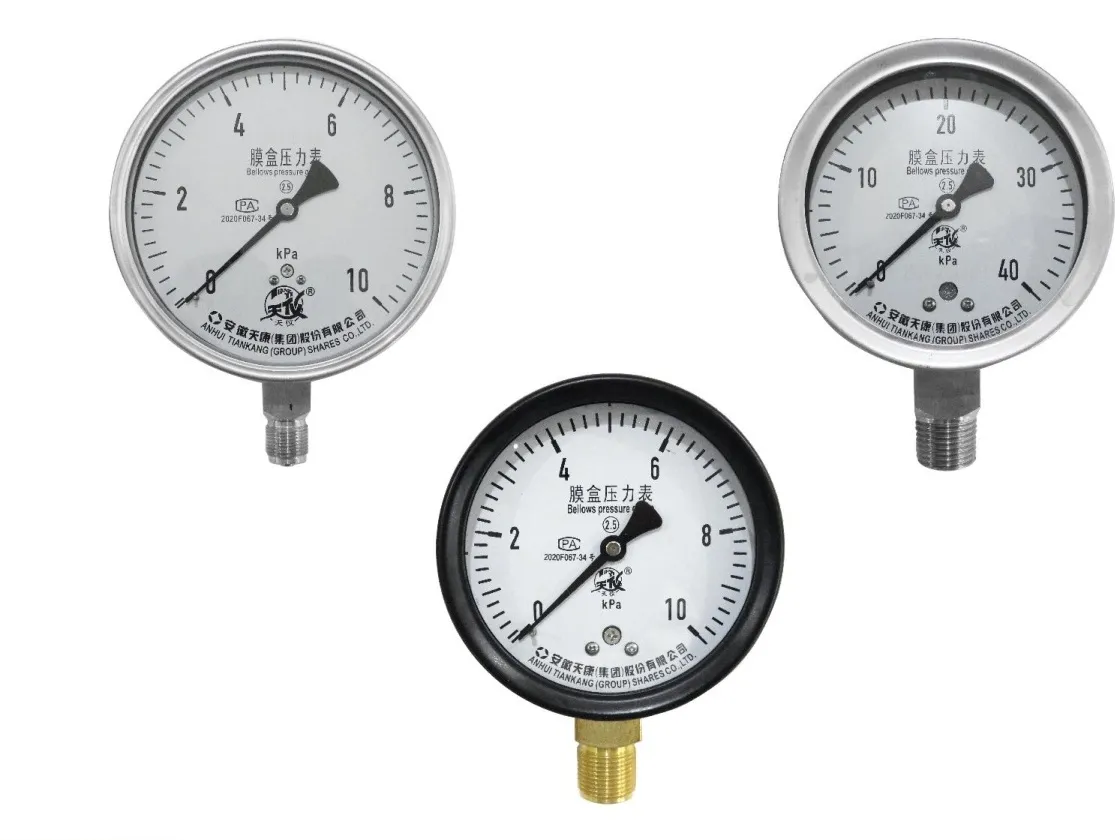

YE Series Capsule Pressure Gauge
Product Overview
Section titled “Product Overview”The YE Series Capsule Pressure Gauge uses a capsule as the sensitive element for measuring minute pressures. It is used for measuring small positive and negative pressures of non-corrosive and non-explosive gases.
Typical applications include cobalt furnace ventilation, gas pipelines, combustion equipment and similar devices.
Applications
Section titled “Applications”- Minute positive and negative gas pressure measurement.
- Non-corrosive and non-explosive gas services.
- Cobalt furnace ventilation and gas pipeline applications.
- Combustion equipment and similar low-pressure devices.
Product Features
Section titled “Product Features”- Capsule sensing element for micro-pressure measurement.
- Available in YE and YEB structures.
- IP55 or IP65 protection rating.
- Carbon steel+copper or stainless steel+stainless steel material combinations.
- Multiple mounting forms and process connections.
Product Principle
Section titled “Product Principle”The gauge is mainly composed of a connector, case, capsule, link rod, movement, pointer and dial. When measured pressure enters the capsule cavity through the connector, the free end of the capsule is displaced under pressure. This displacement drives the movement through the link rod, and the pointer indicates the measured pressure value on the dial.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Models | YE-60, YE-100, YE-150, YEB-60, YEB-100, YEB-150 |
| Scale range | Includes vacuum, compound and positive micro-pressure ranges in kPa |
| Accuracy class | 1.6, 2.5 |
| Protection rating | IP55, IP65 |
Model Selection
Section titled “Model Selection”| Selection item | Options |
|---|---|
| Case shell and component material | Carbon steel+copper with no code; stainless steel+stainless steel code B |
| Connection symbol | - |
| Dial diameter | Φ60, Φ100, Φ150 |
| Installation method | Direct radial mounting, radial back mounting with flange, radial front mounting with flange, direct axial mounting, axial back mounting with flange, axial front mounting with flange |
| Process connection | M14×1.5, M20×1.5, G1/2, 1/2 NPT or others |
| Wetted material | 304SS, 316SS or others |
| Accuracy class | 1.0, 1.6, 2.5 |
| Available accessories | Damping device, heat dissipater, overpressure protector, subcooling pipe or others |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required model and dial diameter.
- Positive or negative pressure range in kPa.
- Accuracy class and protection rating.
- Case/component material and wetted material.
- Mounting method and process connection.
- Required accessories.
Related Products
Section titled “Related Products”- YP series membrane pressure gauge.
- Y series general pressure gauge.
- Pressure gauge accessories.
