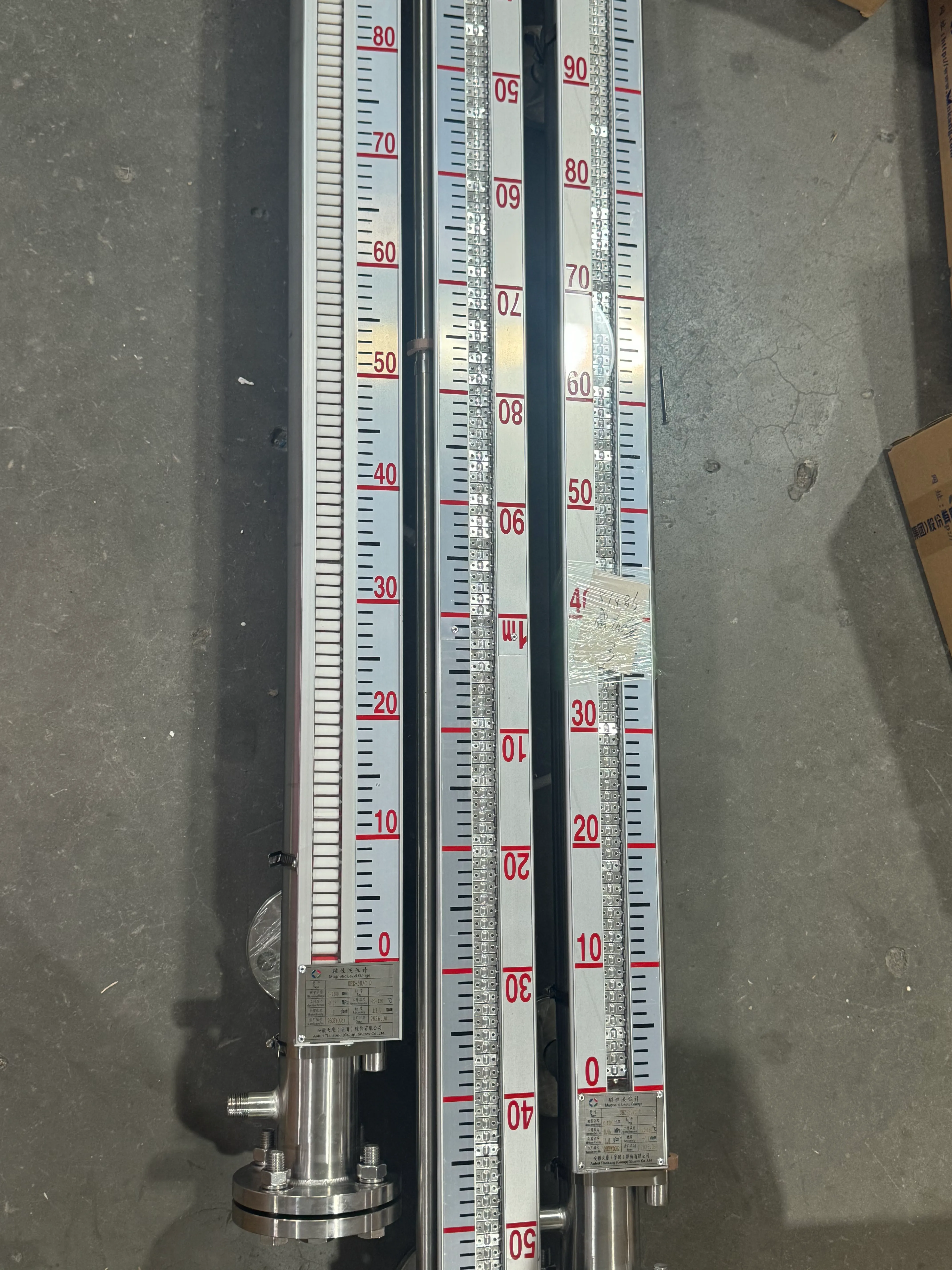

UHZ-50 Series Magnetic Liquid Level Gauge
Product Overview
Section titled “Product Overview”The UHZ-50 Series Magnetic Liquid Level Gauge is a float-type metal-tube field indicating level gauge. It provides sealed, leak-proof and intuitive local indication for liquid level or interface measurement, including applications with high temperature, high pressure, high viscosity and corrosive media.
With optional alarm switches, control switches or a level transmitter, it can provide upper/lower alarm, control and two-wire 4-20 mA DC remote transmission for indication, recording and control.
Applications
Section titled “Applications”- Liquid level and interface measurement in tanks and vessels.
- Power, petroleum, chemical, metallurgy, environmental protection, shipbuilding, construction and food industries.
- High temperature, high pressure, high viscosity and corrosive liquid applications.
Product Principle
Section titled “Product Principle”The gauge works by buoyancy and magnetic coupling. As the liquid level rises or falls, the float in the main tube moves with it. The permanent magnet in the float drives the red-white magnetic indicator through coupling: red indicates the liquid level area and white indicates the gas area.
Product Features
Section titled “Product Features”- Local indication with clear and direct reading.
- Wide measurement range without blind area during the measurement process.
- Display section isolated from the measured medium for good sealing and safety.
- Optional remote transmitter, liquid level controller and switch output.
- Simple structure, convenient installation and easy maintenance.
- Corrosion-resistant and explosion-proof options available.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Models | UHZ-50/C, UHZ-50/D |
| Measurement range | 0-6000 mm; special customization available |
| Measurement accuracy | ±10 mm |
| Medium density | ≥0.35 g/cm³ |
| Operating temperature | -196 to 520°C |
| Operating pressure | -0.1 to 32 MPa |
| Medium viscosity | ≤0.4 Pa.S |
| Interface density difference | ≥0.1 g/cm³ |
| Materials | 304, 316L, PP, PVC, Ti, 304+PTFE, 316L+PTFE and others |
| Connection type | Flange |
| Explosion-proof marking | ExdbIICT6 Gb, ExiaIICT6 Ga, Extb IIICT80°C Db |
Model Selection
Section titled “Model Selection”- Installation method: side mounting, top mounting or other mounting method.
- Main tube material: 304, 316L, PVC, PP, 304+PTFE, 316L+PTFE or other materials.
- Display panel: aluminum alloy panel, stainless steel panel, or magnetic-sensitive electronic dual-color panel with 24 VDC or 220 VAC.
- Discharge flange options include blind flange, drain screw and drain valve.
- Supporting instruments include remote transmission transmitter, magnetostrictive level transmitter and switch output.
- Special structures include frost-proof type, steam jacket type and electric heat tracing type.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Measurement range, installation method and connection flange.
- Medium density, viscosity, corrosivity and temperature.
- Main tube and wetted material.
- Whether remote transmission, switch output or explosion-proof construction is required.
- Special structure such as frost-proof, steam jacket or electric heat tracing.
