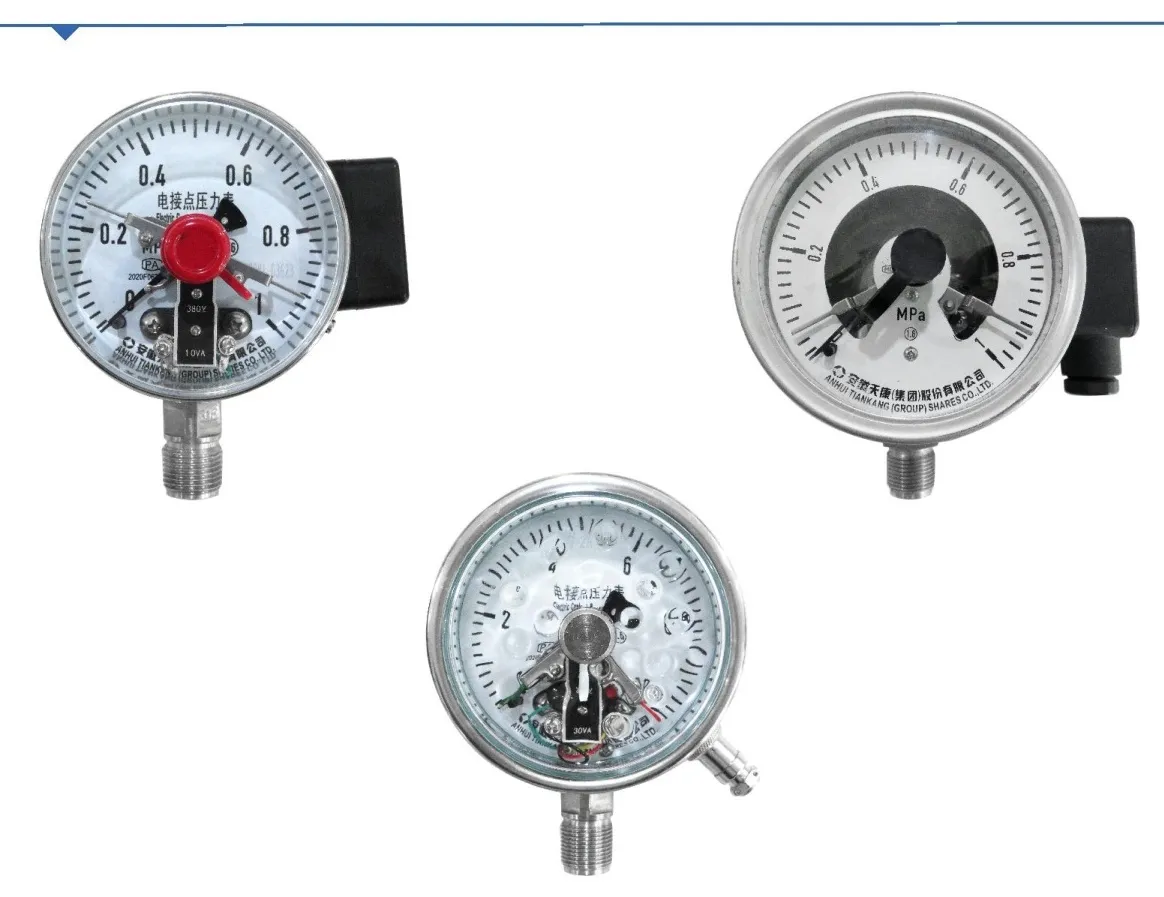

YX Series Electric Contact Pressure Gauge
Product Overview
Section titled “Product Overview”The YX Series Electric Contact Pressure Gauge is used for pressure measurement with electrical contact output. The pressure-sensitive components and casing use stainless steel materials, making the gauge suitable for corrosive gases and liquids.
The gauge can be filled with oil for liquid damping, helping maintain stable indication in environments with strong pulsation and vibration.
Applications
Section titled “Applications”- Pressure measurement with control or alarm contact output.
- Corrosive gas and liquid pressure measurement.
- Sites with strong medium pulsation or environmental vibration.
- Diaphragm-type electric contact pressure gauge applications when matched with isolators.
Product Features
Section titled “Product Features”- Direct-acting or magnetically assisted direct-acting contact types.
- Stainless steel pressure-sensitive components and casing.
- Optional diaphragm isolator thread or flange configuration.
- IP55 or IP65 protection rating.
- Organic glass or safety glass options.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Measurement range | Minimum 0-0.1 MPa, maximum 0-250 MPa; negative pressure range -0.1-2.4 MPa |
| Indication accuracy | Φ60: 2.5%; Φ100/Φ150: 1.5%, 1.0 optional |
| Maximum working voltage | DC24V, AC380V or DC220V |
| Maximum working current | 10A |
| Protection rating | IP55, IP65 |
| Gauge glass | Organic glass, safety glass |
Contact Type
Section titled “Contact Type”| Contact type | Rated power | Maximum working voltage | Maximum allowable current |
|---|---|---|---|
| Direct acting type | 10 | 380 | 0.7 |
| Magnetically assisted direct-acting type | 30 | 380 | 1.0 |
Model Selection
Section titled “Model Selection”| Selection item | Options |
|---|---|
| Contact type | Direct-acting type with no code; magnetically assisted direct-acting type code C |
| Casing shell and element material | Carbon steel+copper with no code; stainless steel+stainless steel code B |
| Pressure gauge category | Non-seismic no code; seismic code N |
| Isolator configuration | No isolator, isolator thread code ML, isolator flange code MF |
| Dial diameter | Φ60, Φ100, Φ150 or other |
| Installation method | Radial direct mounting or other |
| Process connection | Flange connection or threaded connection, specified in text |
| Diaphragm material | 316LSS, H.C alloy, Ta, Ti, Monel, 316 with PTFE coating or other |
| Case filling liquid | Low-viscosity silicone oil, high-viscosity silicone oil, glycerin |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required contact type and electrical parameters.
- Pressure range and indication accuracy.
- Whether seismic construction or isolator configuration is required.
- Shell, element and diaphragm materials.
- Process connection and installation method.
