The YM Series Diaphragm Pressure Gauge combines a general pressure gauge, connector and diaphragm isolator into a sealed system filled with sealing liquid. It is used when the measured medium should not directly enter a general pressure gauge.
This series is suitable for petrochemical, alkali production, chemical fiber, pharmaceutical and food process applications, especially where the medium is highly corrosive, high temperature, high viscosity, easy to crystallize, easy to solidify or contains suspended solid particles.
- Pressure measurement of highly corrosive or high-temperature media.
- High-viscosity, crystallizing or solidifying media.
- Media containing suspended solid particles.
- Processes where direct medium entry into a general pressure gauge must be avoided.
- Petrochemical, pharmaceutical, chemical fiber and food process lines.
- Diaphragm isolation: The diaphragm isolator separates the process medium from the pressure gauge.
- Closed liquid-filled system: Pressure is transferred by sealing liquid in the closed system.
- Corrosion-resistant material options: Diaphragm materials include 316LSS, 316LSS+PTFE, Hastelloy HC-276, tantalum, titanium and Monel 400.
- Selectable seal liquids: High-viscosity silicone oil, low-viscosity silicone oil, glycerol aqueous solution, vegetable oil and fluorine oil are available.

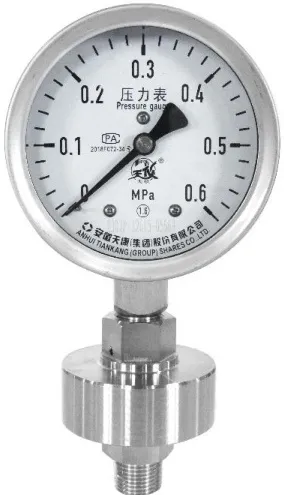

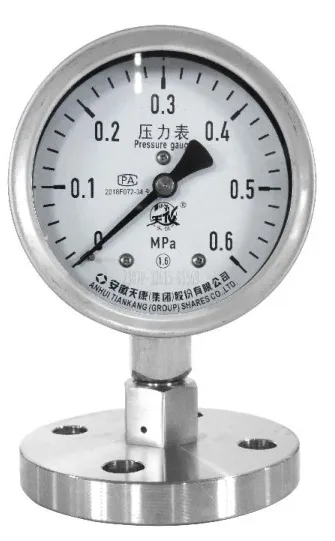

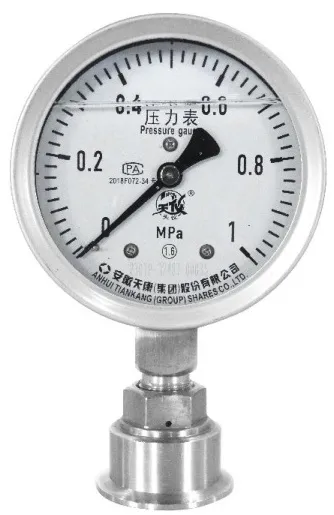

- Flange or threaded connection: Diaphragm flange and diaphragm threaded structures can be selected.
When the pressure of the measured medium acts on the diaphragm, the diaphragm deforms and compresses the sealing liquid in the closed system. The sealing liquid transfers pressure to the elastic element in the pressure gauge, and the indicating device displays the corresponding pressure value.
| Model |
Measurement range (MPa) |
Accuracy class |
| YMF-60, YML-60 |
-0.1-0, -0.1-0.06, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4, -0.1-3.9, -0.1-5.9, 0-0.6, 0-1, 0-1.6, 0-2.5, 0-4, 0-6, 0-10, 0-16, 0-25, 0-40, 0-60 |
1.6, 2.5, 4.0 |
| YMF-100, YMF-100Z, YMF-100ZT, YML-100, YML-100Z, YML-100ZT, YMF-150, YMF-150Z, YMF-150ZT, YML-150, YML-150Z, YML-150ZT |
-0.1-0, -0.1-0.06, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4, -0.1-3.9, -0.1-5.9, 0-0.6, 0-1, 0-1.6, 0-2.5, 0-4, 0-6, 0-10, 0-16, 0-25, 0-40 |
1.0, 1.6, 2.5 |
| Item |
Available materials |
| Diaphragm materials |
0Cr17Ni12Mo2 (316), Monel alloy (Cu30Ni70), Hastelloy (H276C), tantalum (Ta), fluoroplastics (F4) |
| Flange materials |
Stainless steel 0Cr17Ni12Mo2 (316), stainless steel lined with fluoroplastics (316+F4) |
| Gasket materials |
Nitrile rubber, fluorine rubber, silicone rubber, fluoroplastics |
| Seal liquid |
Pressurized part temperature range |
Specific gravity (g/cm3) |
Application |
| High-viscosity silicone oil |
-10-200°C |
1.07 |
High-temperature use |
| Low-viscosity silicone oil |
-30-100°C |
0.94 |
General use |
| Glycerol aqueous solution |
-5-100°C |
1.27 |
Food use |
| Vegetable oil |
-5-100°C |
0.93 |
Food use |
| Fluorine oil |
-30-150°C |
1.93 |
Hydrogen and oxygen |
| Type |
Materials |
| Isolating diaphragm |
316LSS, 316LSS+PTFE, Hastelloy HC-276, tantalum, titanium, Monel 400 and others |
| Selection item |
Options |
| Seismic function |
Non-seismic none or omitted; seismic code N |
| Diaphragm type |
Diaphragm flange code F; diaphragm threaded code L |
| Dial diameter |
Φ60, Φ100, Φ150 |
| Diaphragm body installation method |
Direct radial mounting, radial back mounting with flange, radial front mounting with flange, direct axial mounting, axial back mounting with flange, axial front mounting with flange |
| Process connection |
Flange connection or threaded connection, specified in text |
| Diaphragm material |
316LSS, H.C alloy, Ta, Ti, Monel and others |
| Accuracy class |
1.0, 1.6, 2.5 |
| Case shell fill fluid |
Silicone oil, high-viscosity silicone oil or glycerol |
| Available accessories |
Damping device, heat dissipater, overpressure protector and other accessories |
- Measured medium and corrosion characteristics.
- Whether the medium is high-temperature, high-viscosity, crystallizing, solidifying or particle-containing.
- Required range, accuracy class and dial diameter.
- Diaphragm type, process connection and installation method.
- Diaphragm, flange, gasket and seal liquid materials.
- Whether seismic function or accessories are required.
