Precision Pressure Gauge
Product Overview

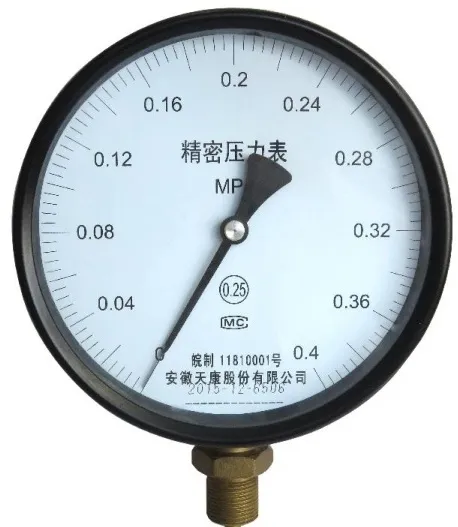

Section titled “Product Overview”The Precision Pressure Gauge consists of a pressure measurement system, transmission mechanism, indicating device and casing. The pressure-sensitive element is specially processed for stable and reliable performance.
Precision pressure gauges are mainly used to calibrate industrial standard pressure gauges. They can also be used for precise pressure measurement of non-corrosive, non-crystalline and non-solidifying media such as copper alloys and alloy structural steel in process environments.
Applications
Section titled “Applications”- Calibration of industrial standard pressure gauges.
- Precise on-site pressure measurement.
- Non-corrosive, non-crystalline and non-solidifying media.
- Process environments using copper alloy or alloy structural steel materials.
Product Features
Section titled “Product Features”- Specially processed pressure-sensitive element.
- High-precision indication after matching and calibration with precision transmission mechanism.
- Optional carbon steel+copper or stainless steel+stainless steel construction.
- Φ150 dial diameter.
- Optional damper, heat sink, overpressure protector and condensing tube.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Models | Y-150, YB-150 |
| Measurement range | -0.1-0 to 0-250 MPa ranges according to selection |
| Accuracy grade | 0.4, 0.25 |
| Operating environment | -40-70°C, relative humidity not exceeding 85% |
| Temperature influence | Not greater than 0.4%/10°C when temperature deviates from 20±5°C |
Model Selection
Section titled “Model Selection”| Selection item | Options |
|---|---|
| Casing shell and element material | Carbon steel+copper with no code; stainless steel+stainless steel code B |
| Connection symbol | - |
| Dial diameter | Φ150 |
| Process connection | M20×1.5, G1/2, 1/2 NPT or other |
| Accuracy grade | 0.4, 0.25, 0.16 or other |
| Optional accessories | Damper, heat sink, overpressure protector, condensing tube or other |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required model and material combination.
- Measurement range and accuracy grade.
- Process connection.
- Calibration or process measurement purpose.
- Required accessories.
Related Products
Section titled “Related Products”- Y series general pressure gauge.
- YB series stainless steel pressure gauge.
- Pressure gauge accessories.
