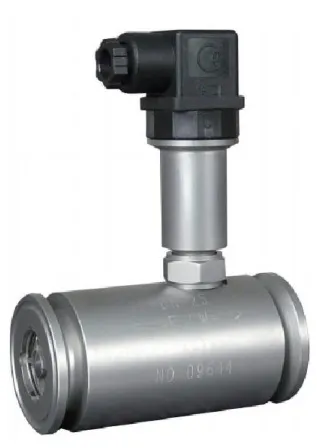

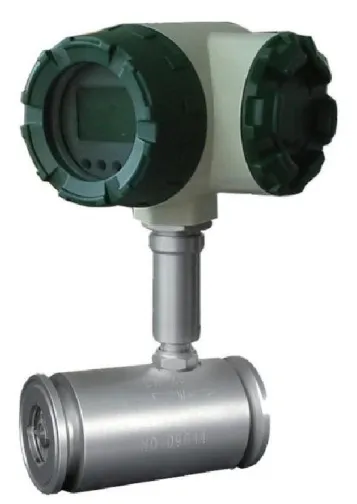

TK5300 Series Sanitary Liquid Turbine Flowmeter
Product Overview
Section titled “Product Overview”The TK5300 Series Sanitary Liquid Turbine Flowmeter is a liquid turbine flowmeter with sanitary connection. It is suitable for clean liquid flow measurement in food, pharmaceutical, beverage and fine chemical processes.
The compact structure supports local display and multiple output forms, making it suitable for pipelines requiring sanitary connection, quick disassembly and cleaning maintenance.
 |
 |
|---|
Product Features
Section titled “Product Features”- Compact structure with convenient installation and maintenance.
- Sanitary connection for easy cleaning and disassembly.
- Suitable for low-viscosity, clean and non-corrosive liquids.
- Pulse, 4-20 mA, HART or Modbus output options.
- Optional local display, power supply and protection level.
- Suitable for food, pharmaceutical and beverage sanitary applications.
Applications
Section titled “Applications”- Clean liquid flow measurement in food processes.
- Pharmaceutical, beverage and fine chemical sanitary pipelines.
- Liquid metering systems requiring clamp connection and local display.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Applicable standard | Turbine flow sensor JB/T 9246-1999 |
| Verification regulation | Turbine flowmeter JJG 1037-2008 |
| Nominal diameter | Multiple sizes within DN4-DN100 |
| Instrument material | 304 stainless steel and others |
| Accuracy grade | 1%, 0.5%, 0.2% options |
| Connection | Sanitary clamp connection and related sanitary fittings |
| Output signal | Pulse, 4-20 mA, HART, Modbus and others |
| Power supply | 24 VDC, lithium battery, 220 VAC and others according to selection |
| Protection level | IP65, IP67 options |
Dimensions and Selection
Section titled “Dimensions and Selection”The catalogue lists main installation dimensions for sanitary connections from DN4 to DN100 and provides TK5300 ordering codes. Selection should consider diameter, connection type, nominal pressure, temperature range, accuracy, output, power supply, protection level and explosion protection.
Operation and Maintenance
Section titled “Operation and Maintenance”The PDF catalogue includes warranty information and troubleshooting guidance for issues such as no flow signal, abnormal display and abnormal output. This page summarizes product selection content only; detailed maintenance steps can be checked in the complete technical document.
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Medium name, temperature, pressure, density and viscosity.
- Sanitary connection type and pipe diameter.
- Minimum, normal and maximum flow rate.
- Output signal, power supply and local display requirement.
- Protection, explosion-proof and cleaning maintenance requirements.
