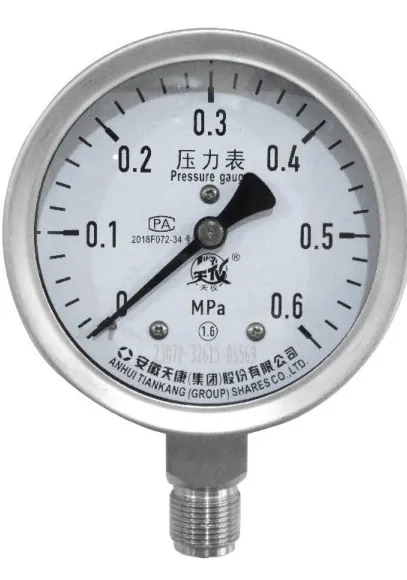

Dry Seismic Pressure Gauge
Product Overview
Section titled “Product Overview”The Dry Seismic Pressure Gauge is designed for corrosive gases and fluids in industrial applications with high vibration and extreme temperature conditions. It provides vibration resistance without filling oil in the gauge head.
Applications
Section titled “Applications”- Metallurgy, power, petroleum, chemical, light industry and machinery sectors.
- Pressure monitoring where vibration is high.
- Conditions where high or low temperature may cause oil leakage or solidification in oil-filled gauges.
- Corrosive gas and fluid pressure measurement.
Product Principle
Section titled “Product Principle”Oil-filled pressure gauges were traditionally used for vibration resistance, but oil and gaskets may react or solidify at high or low temperatures. This dry seismic gauge uses a damping mechanism so the gauge head does not require oil filling while still achieving shock resistance.
Technical Specifications
Section titled “Technical Specifications”| Item | Specification |
|---|---|
| Models | YB-100, YB-150, YB-200, YB-250 |
| Measurement range | 0-0.1 to 0-60 MPa and compound ranges from -0.1 MPa according to selection |
| Accuracy grade | 1.0, 1.6, 2.5 |
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Required model and measurement range.
- Accuracy grade.
- Medium and corrosive condition.
- Site vibration and temperature conditions.
Related Products
Section titled “Related Products”- YBN series vibration-resistant stainless steel pressure gauge.
- YB series stainless steel pressure gauge.
