High Temperature Noble Metal Thermocouple
Product Overview
Section titled “Product Overview”The high temperature noble metal thermocouple is suitable for high-temperature applications in a variety of production processes. It is widely used for temperature measurement in glass, ceramics and industrial salt bath furnaces.
Applications
Section titled “Applications”- High-temperature measurement in the glass industry.
- High-temperature measurement in the ceramic industry.
- Industrial salt bath furnace temperature measurement.
- Other high-temperature production-process applications.
Product Advantages
Section titled “Product Advantages”- S, R and B graduations are available.
- The temperature measurement range is 0 to 1300°C for S and R graduations, and 0 to 1600°C for B graduation.
- High-alumina corundum protective tube material.
- Thermal response time for the Φ16 mm specification is less than 150 s.
- Junction box protection level is IP65.
Installation Method

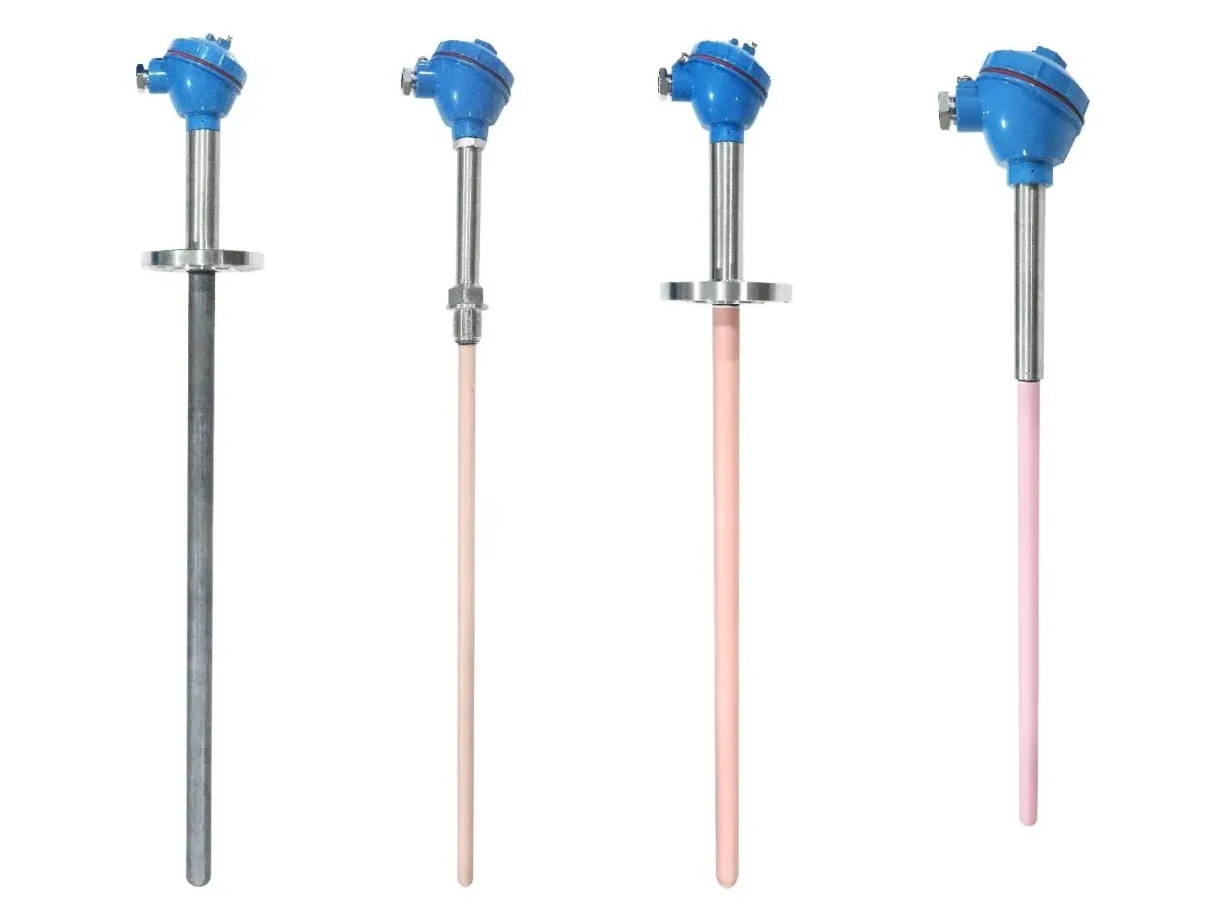

Section titled “Installation Method”The structure diagrams show different protective-tube constructions. For selection, provide the required insertion length L, mounting dimensions, protective-tube outside diameter d and electrical-interface requirement.
Key Parameters
Section titled “Key Parameters”| Model | Graduation | Temperature Measurement Range | Thermal Response Time | Material | d |
|---|---|---|---|---|---|
| WRP-130, WRP2-130 | S | 0 to 1300°C | ＜150 s | High-alumina corundum | Φ16 mm |
| WRP-131, WRP2-131 | S | 0 to 1300°C | ＜360 s | High-alumina corundum | Φ25 mm |
| WRQ-130, WRQ2-130 | R | 0 to 1300°C | ＜150 s | High-alumina corundum | Φ16 mm |
| WRQ-131, WRQ2-131 | R | 0 to 1300°C | ＜360 s | High-alumina corundum | Φ25 mm |
| WRR-130, WRR2-130 | B | 0 to 1600°C | ＜150 s | High-alumina corundum | Φ16 mm |
| WRR-131, WRR2-131 | B | 0 to 1600°C | ＜360 s | High-alumina corundum | Φ25 mm |
| Item | Parameter |
|---|---|
| Electrical interface | M20×1.5, NPT1/2 |
| Protection level | IP65 |
| Coupling wire diameter | 0.5 mm |
| Nominal pressure | Atmospheric pressure |
Main Models
Section titled “Main Models”- WRP-130, WRP2-130, WRP-131, WRP2-131
- WRQ-130, WRQ2-130, WRQ-131, WRQ2-131
- WRR-130, WRR2-130, WRR-131, WRR2-131
Information Required for Inquiry
Section titled “Information Required for Inquiry”- Measured process, such as glass, ceramics, an industrial salt bath furnace or another high-temperature unit.
- Actual operating temperature range and medium or furnace atmosphere.
- Required graduation and single- or double-element requirement.
- Required protective-tube diameter d, insertion length L, mounting dimensions and electrical interface.
- Required quantity.
